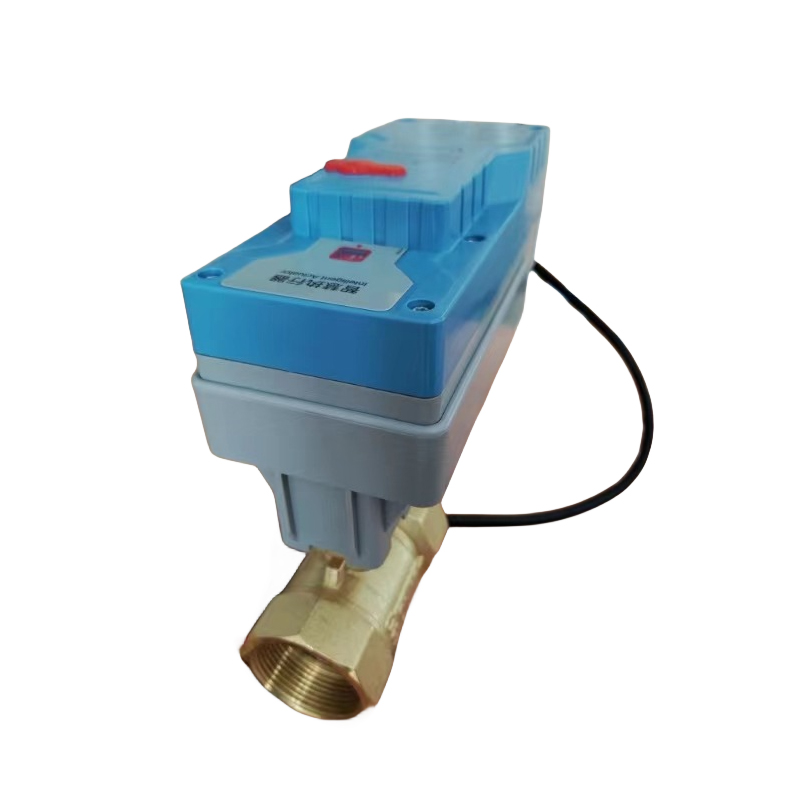

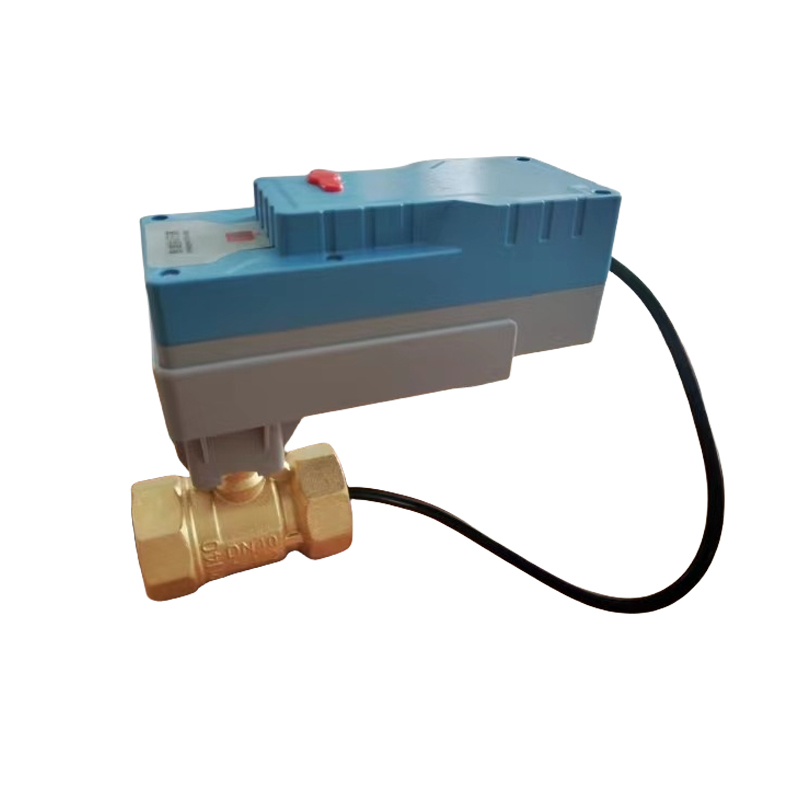

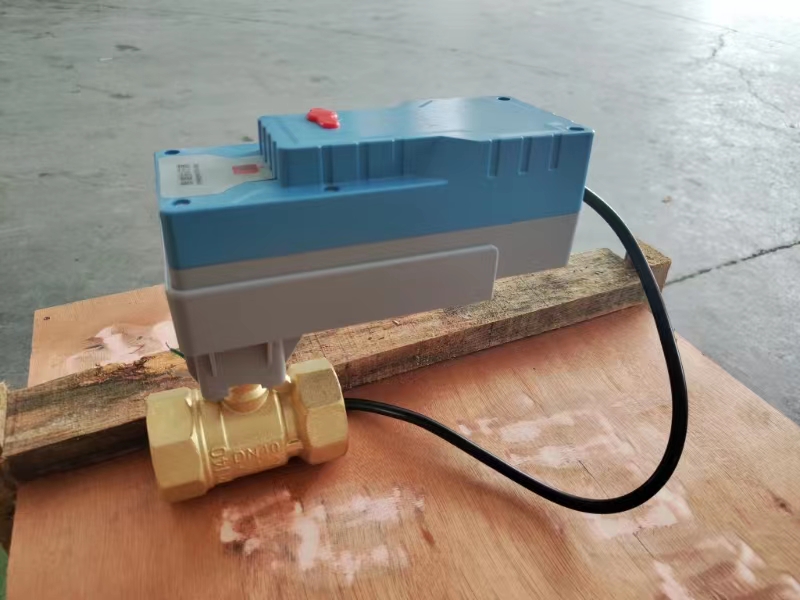

24V Modulating Electric Ball Valve For Chiller Water And FCU

The BTV04B series electric ball valve series is a combination of a 25Nm electric actuator and a DN20-DN50 electric ball valve BN40P body. This series of electric regulating ball valves is widely used in air conditioning, refrigeration, heating, and other building automation systems. It can precisely adjust the flow of media in the system, thereby controlling temperature, and pressure, and achieving energy-saving purposes.

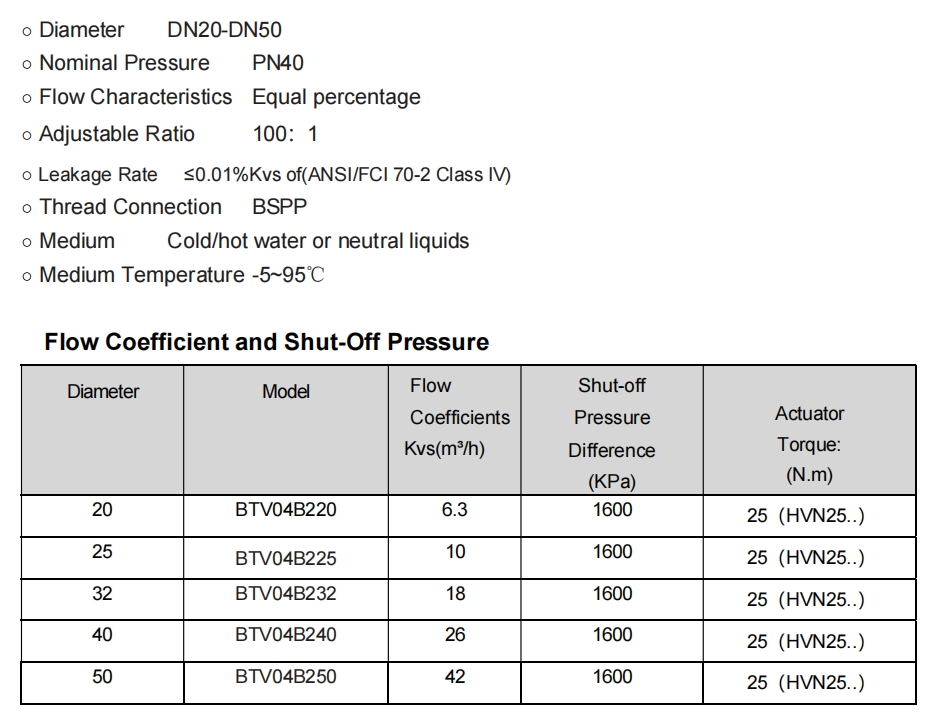

>> Technical Parameter

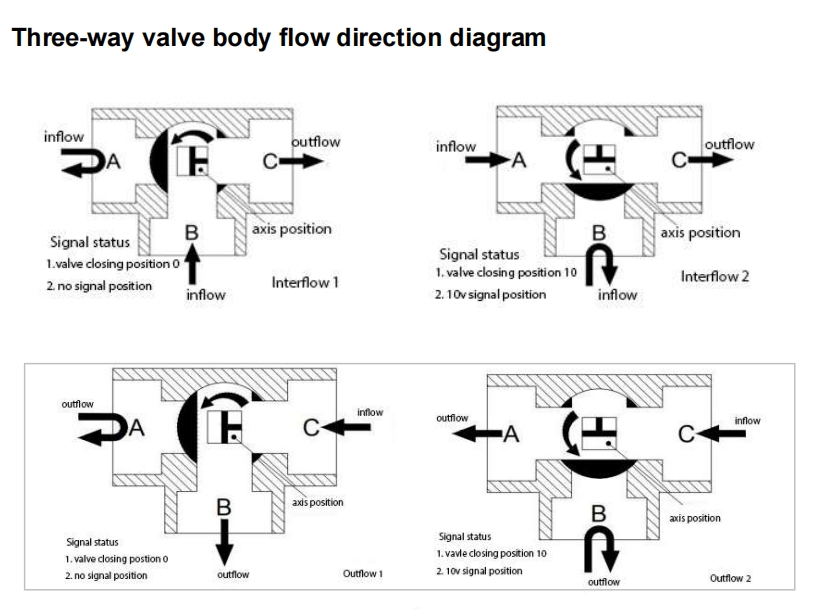

>> Flow Diagram

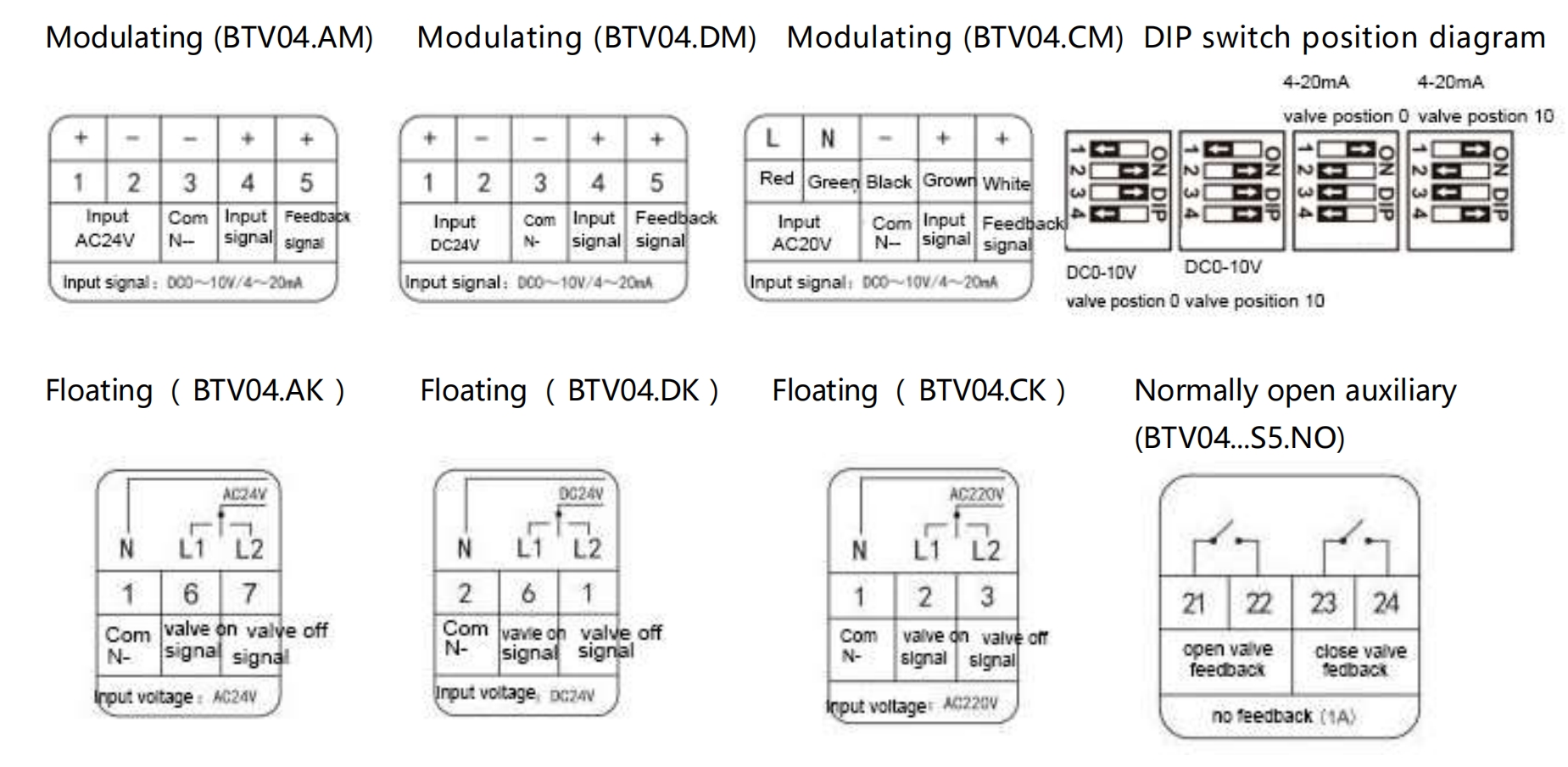

>> Wiring Diagram

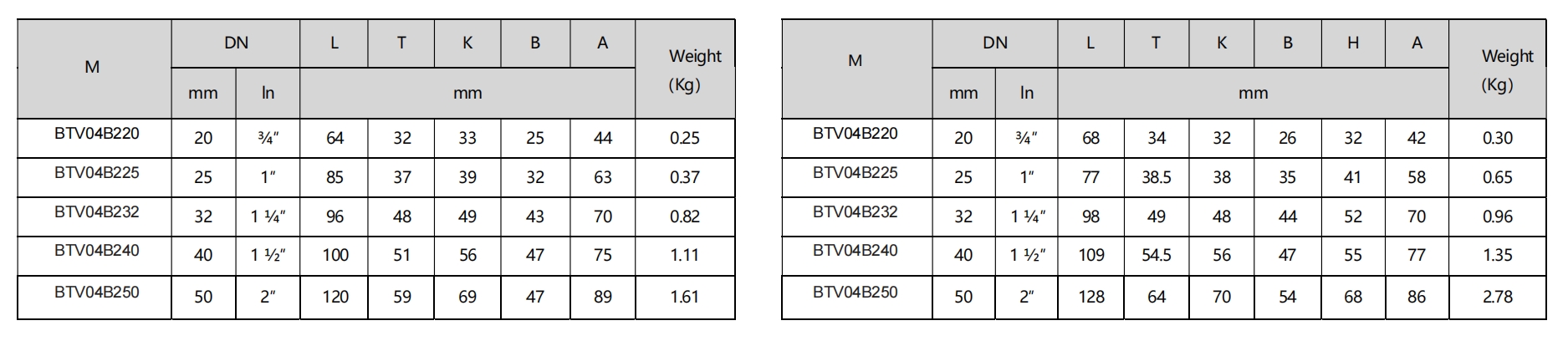

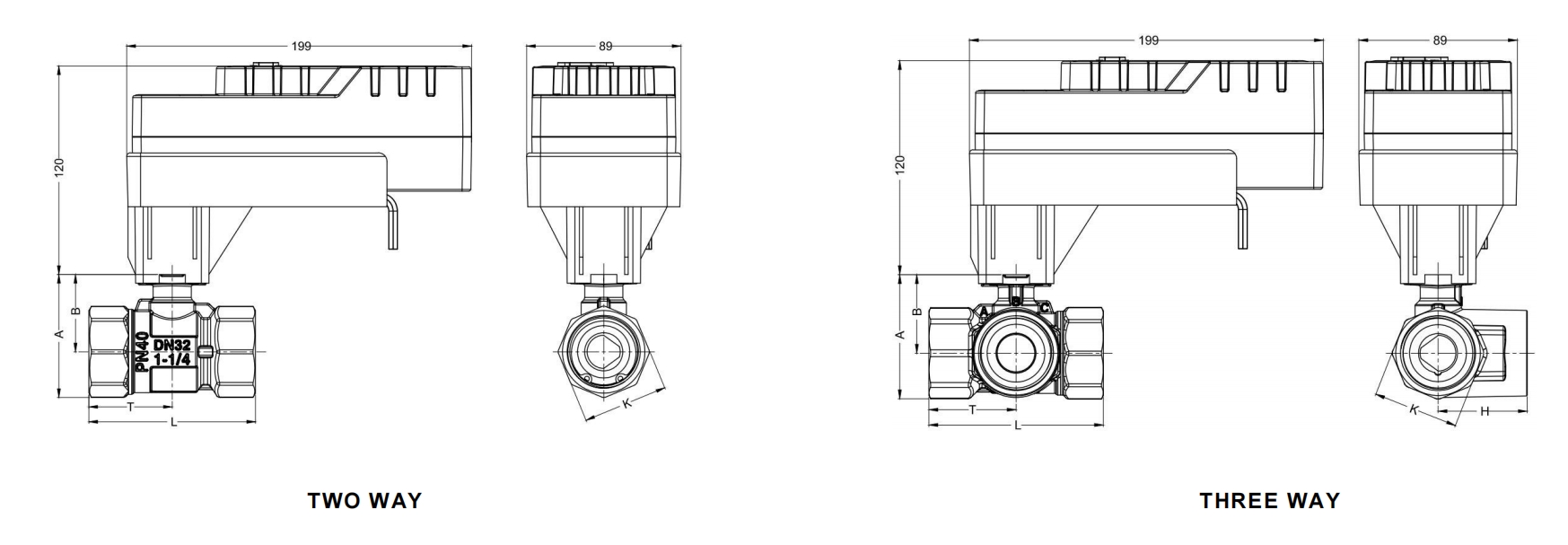

>> Dimension
