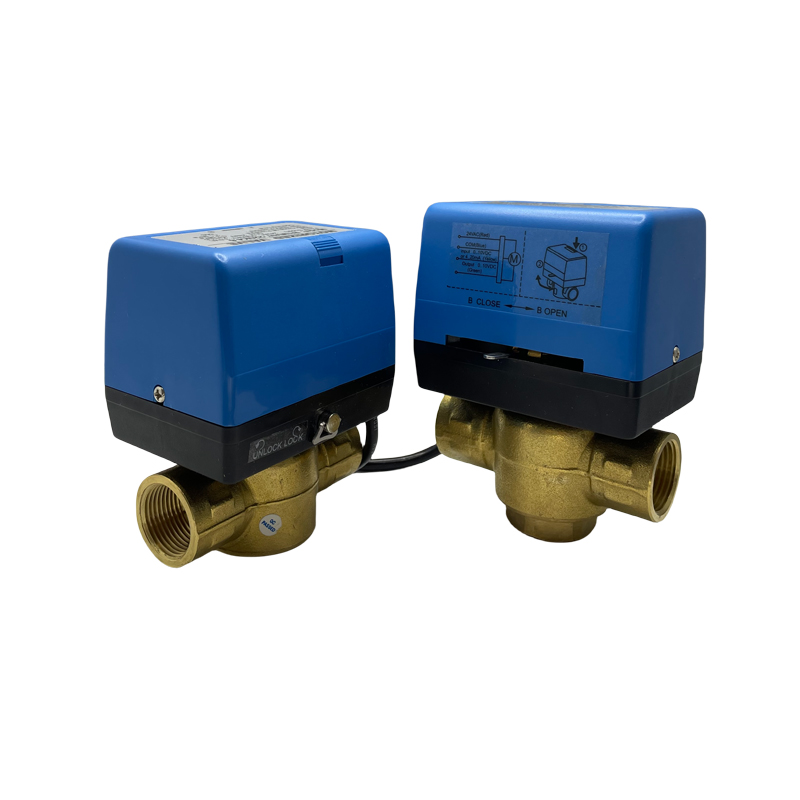

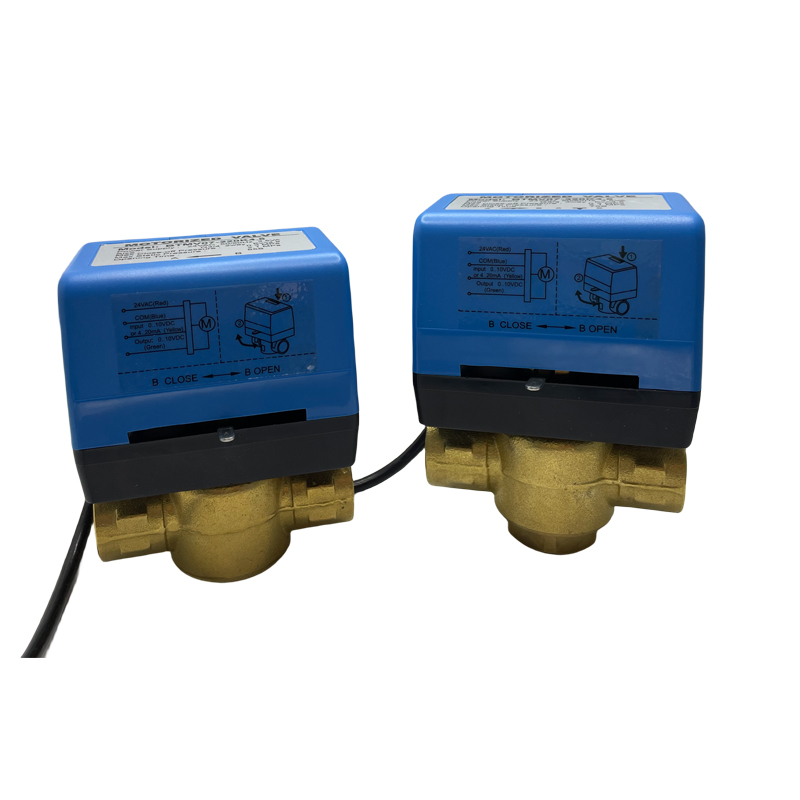

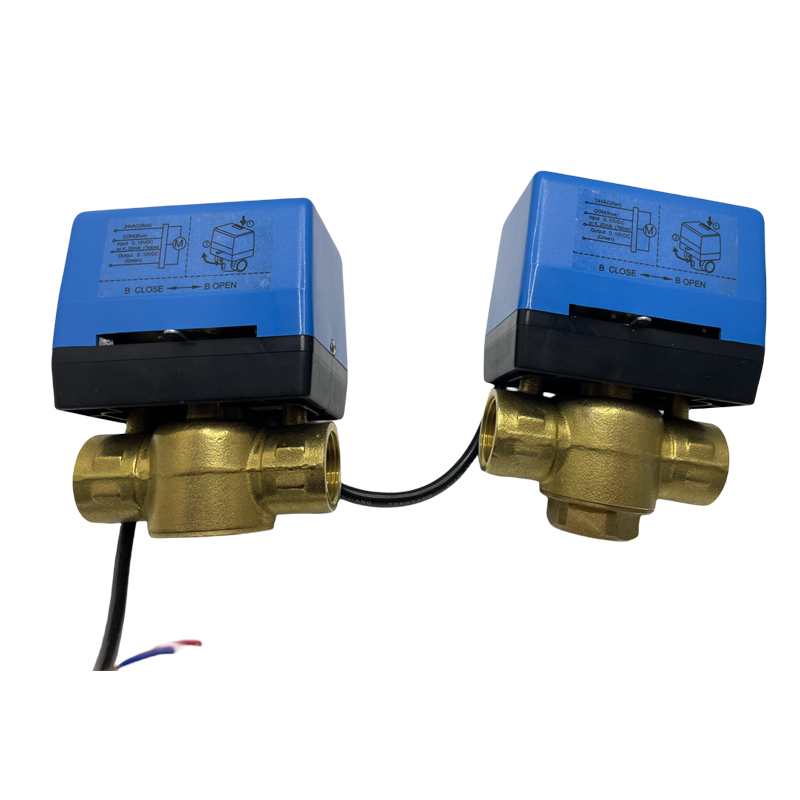

BTMV07 series floating/modulating valves are mainly used in central air-conditioning cool/heat water systems. It can accurately control the flow of cool/heat medium according to the actual requirement, and will not result in sudden temperature changes and control the room temperature accurately.
The valve is driven by a bi-directional motor, which is connected to the floating thermostat by common, open, and closed terminals. The floating thermostat will continuously collect the data make processing, and send out control signals to operate or stop the motor to control the valve’s open/close angle.
>> Product Video
Key Features:
1. Bi-directional floating proportional control;
2. High precision and sensitivity of temperature control;
3. Various AC voltages for selection, such as 24V, 110V, and 220V, etc.;
4. Timing protection device (for 24V working power supply, it can be assembled for optional), to ensure motor reliable and durable life;
5. Built-in electronic card (24V working power supply only) can receive 0~10V (input impedance: 200KΩ) or 4~20mA DC (input impedance: 500Ω) input control signal, and provide proportional control, and 0~10Vdc (1mA) feedback signal.
6. The valve actuator and valve body use a tight lock connection. The actuator can be installed after the installation of the valve body.

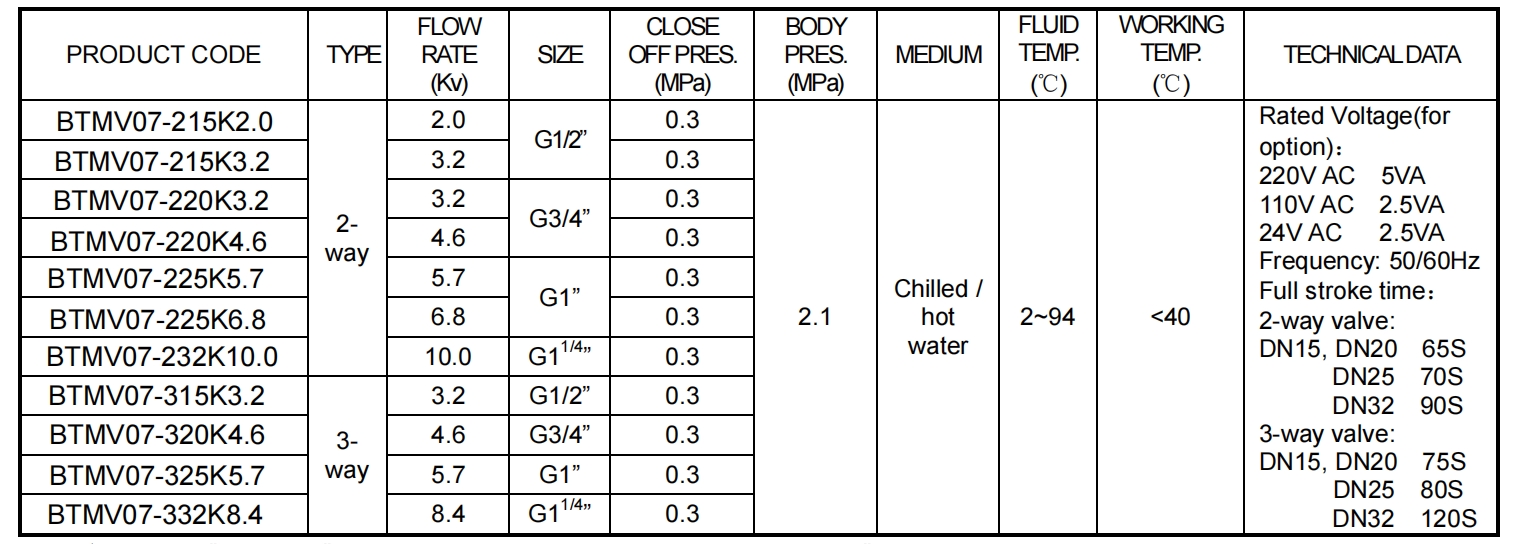

>> Product Parameters

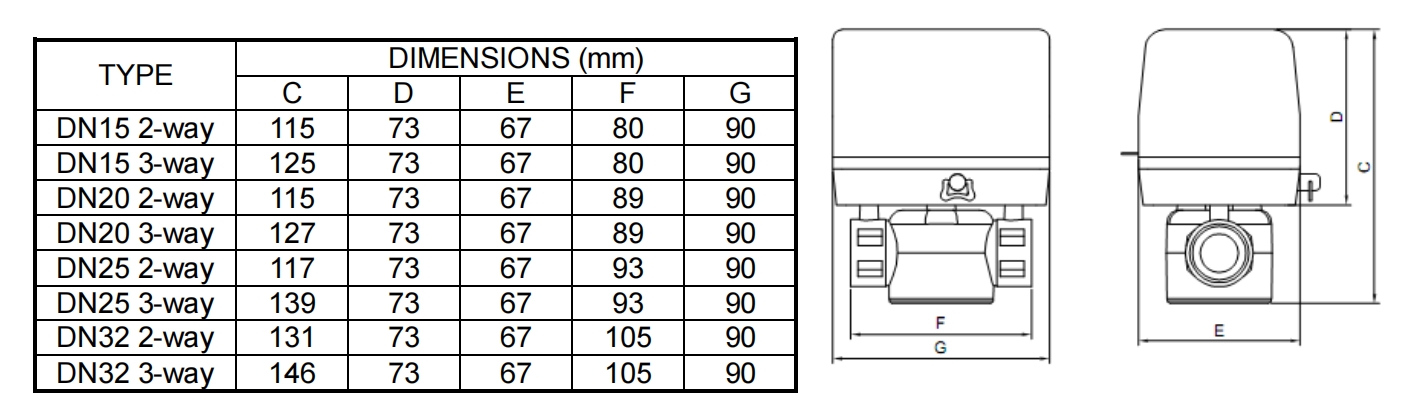

>> Dimension

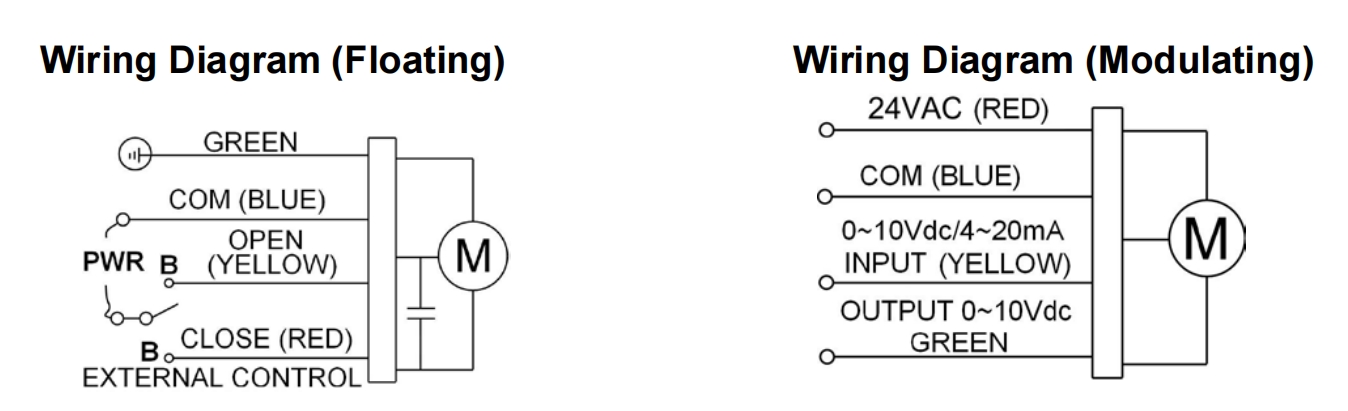

>> Wiring

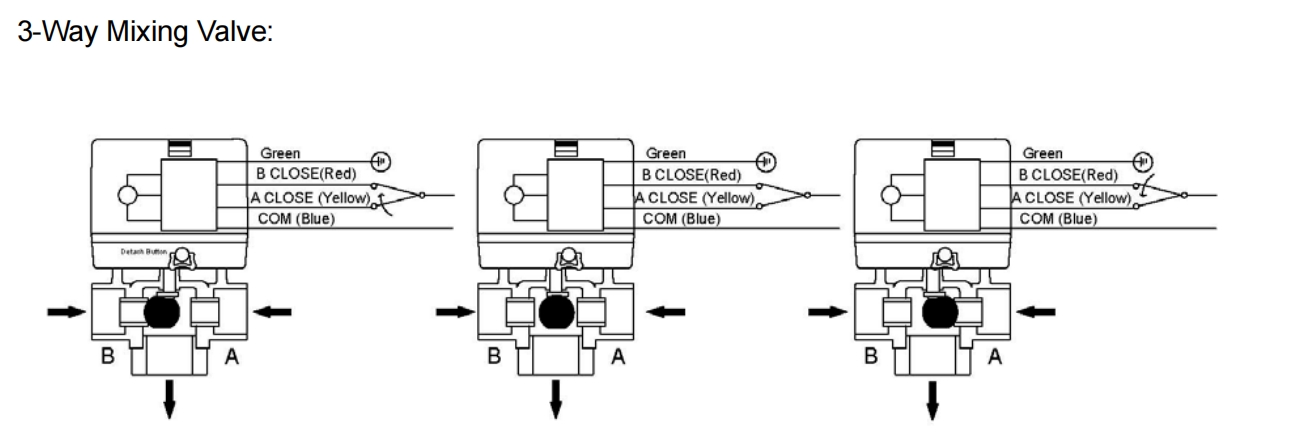

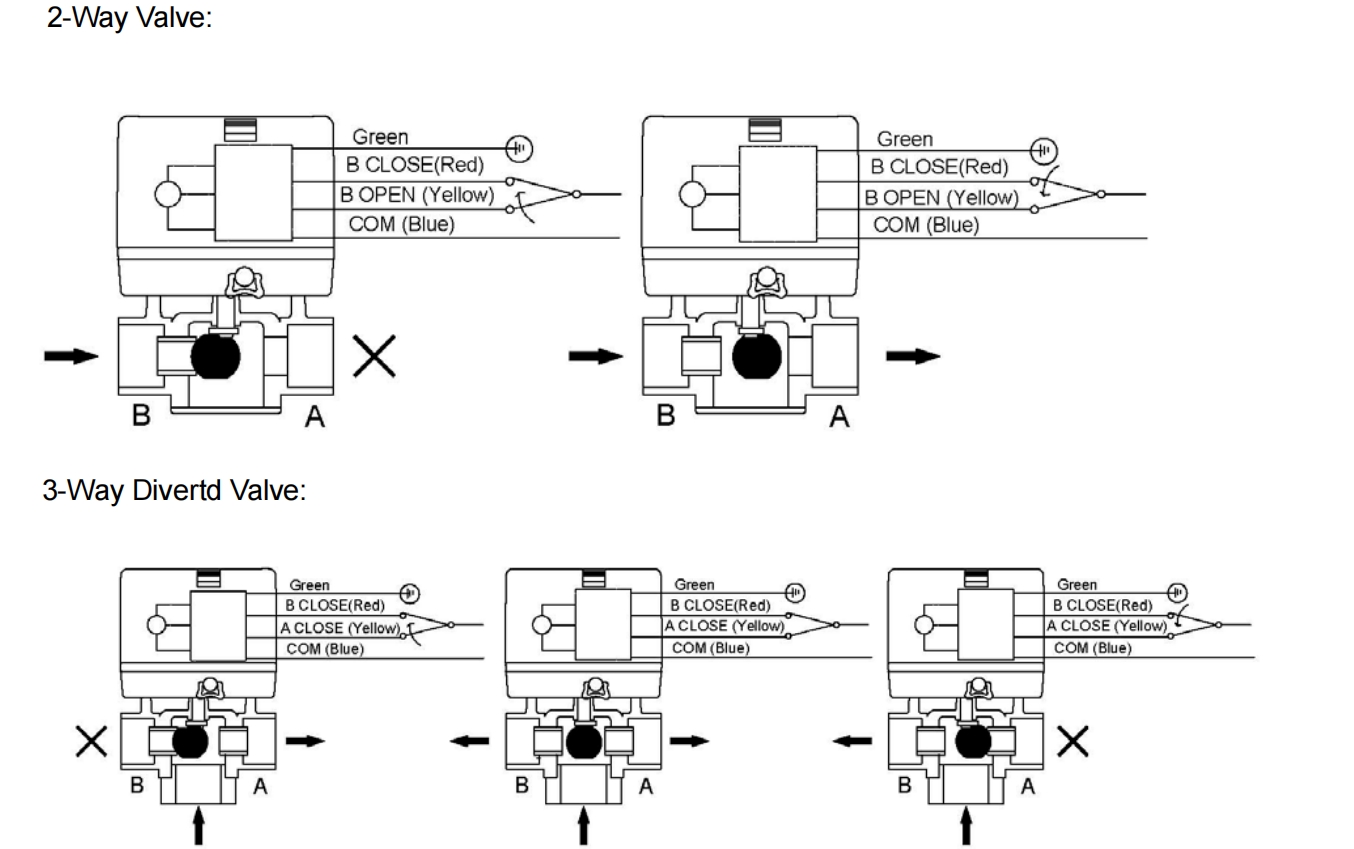

>> Installation
