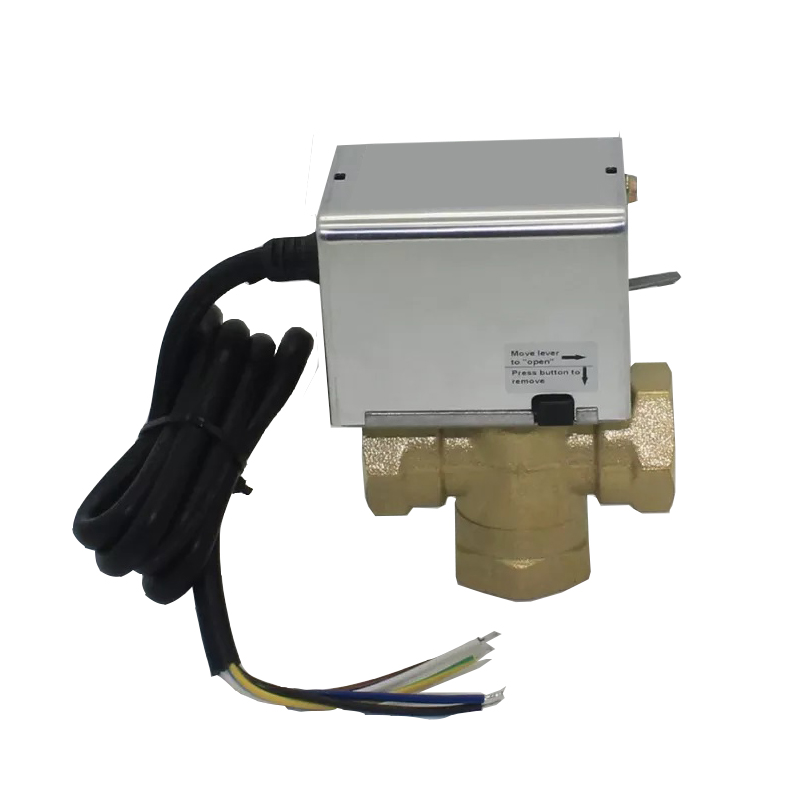

Electric 5 Wires Motorized Zone Valve For Fan Coil Unit

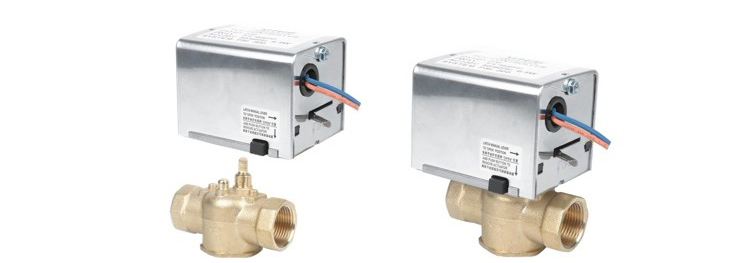

BTV01-5W series motorized zone valve is used to control the flow of chilled or hot water in residential, and commercial HVAC systems, such as fan coil units, terminal reheat coils, and water treatment industries. The valve is driven by a hysteresis synchronous motor, with valve assembly, and spring return.
BTV01-V series motorized zone valve is used to control the flow of chilled or hot water in residential, and commercial HVAC systems, such as fan coil units, terminal reheat coils, and water treatment industries. The valve is driven by a hysteresis synchronous motor, with valve assembly, and spring return.

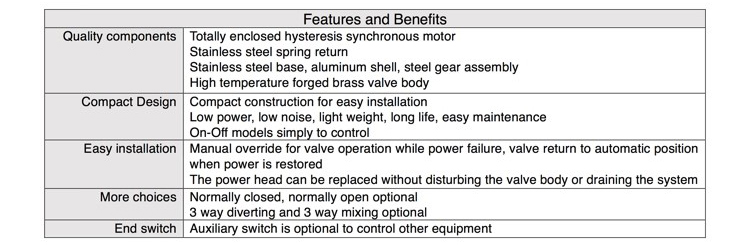

>> Features & Benefits

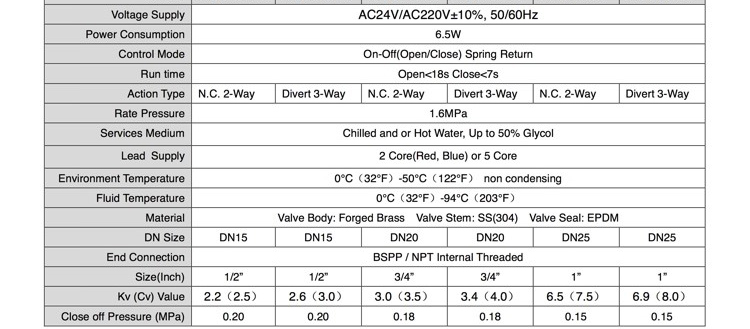

>> Technical Data

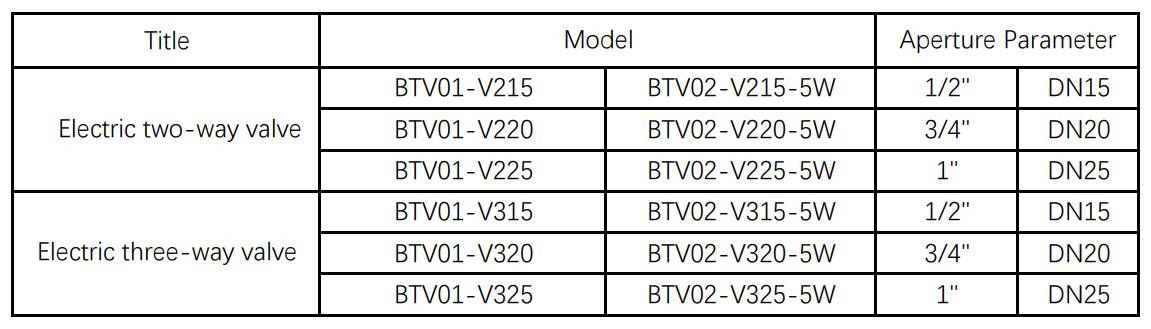

>> Model comparsion table

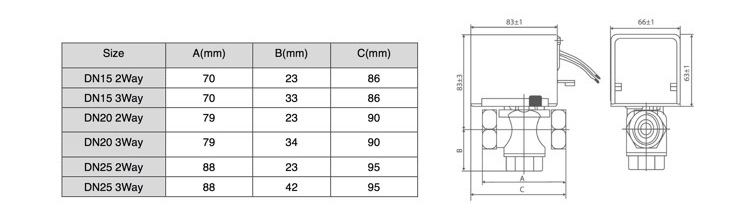

>> Dimensions

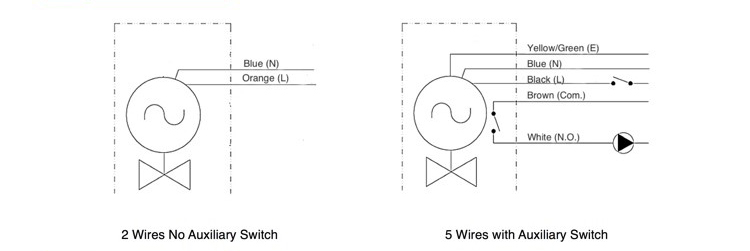

>> Wiring

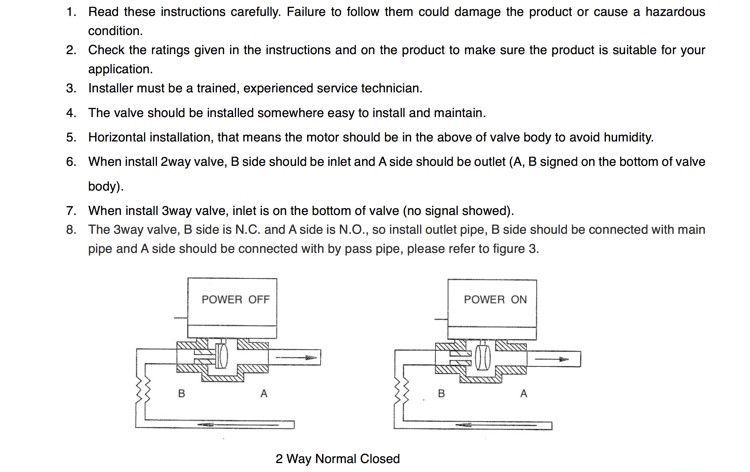

>> Installations
