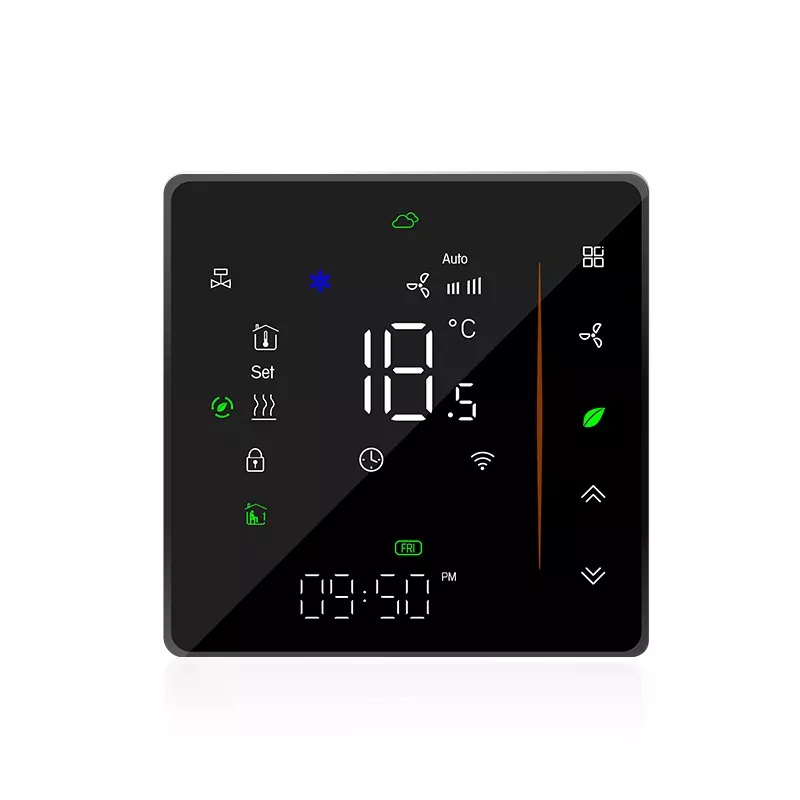

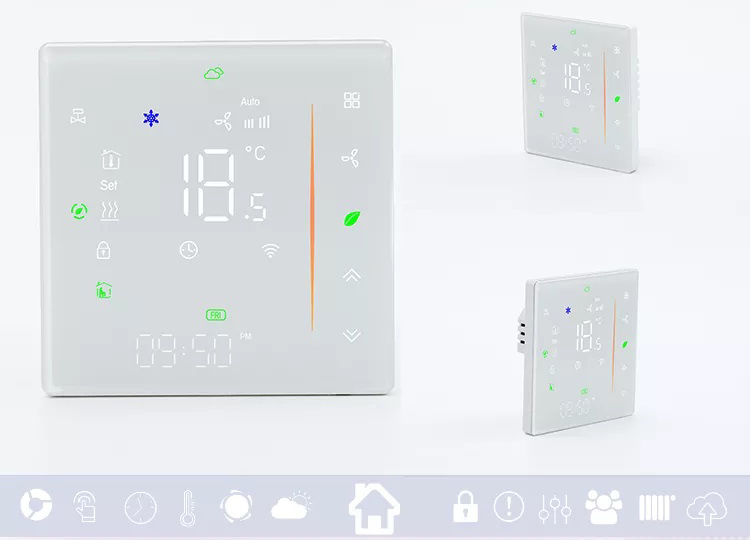

The BT01-WF-FCU-2M is a WiFi-enabled modulating thermostat designed for fan coil unit (FCU) HVAC systems.
It provides 0–10V continuous output control, allowing precise modulation of motorized valves or actuators, and enables remote monitoring and control via WiFi.
With stable control logic and flexible power supply options, this thermostat is ideal for commercial buildings, residential projects, and smart HVAC systems that require accurate temperature control and energy-efficient operation.
-
● 0–10V Modulating Control
Continuous analog output for precise valve or actuator modulation -

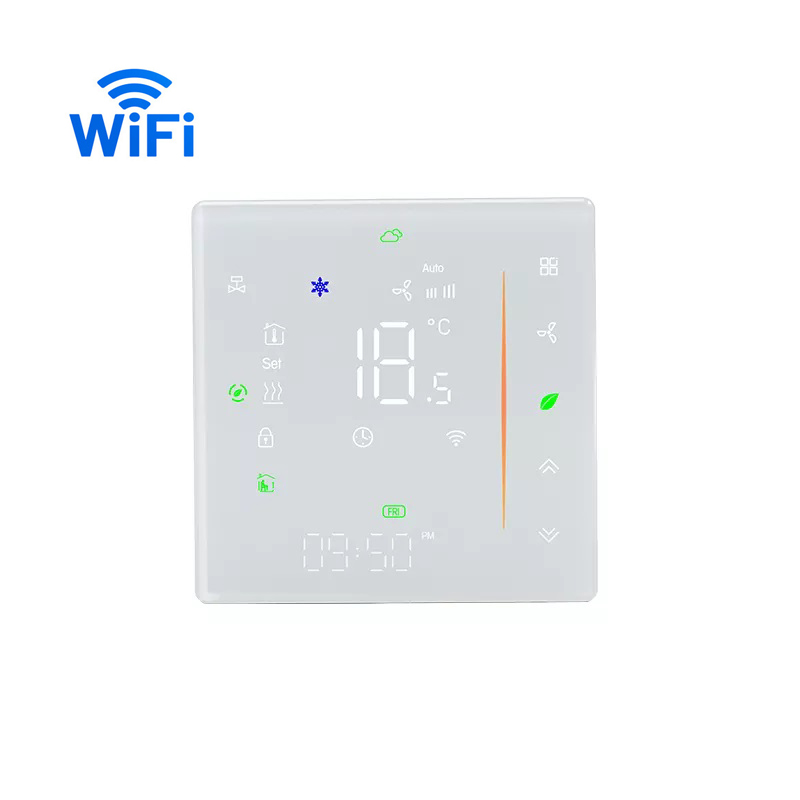

● WiFi Connectivity
Remote control and monitoring via mobile app or cloud platform -
● FCU Application Ready
Designed specifically for fan coil unit systems -
● Wide Power Supply
24VAC / 110VAC / 220VAC, 50/60Hz -

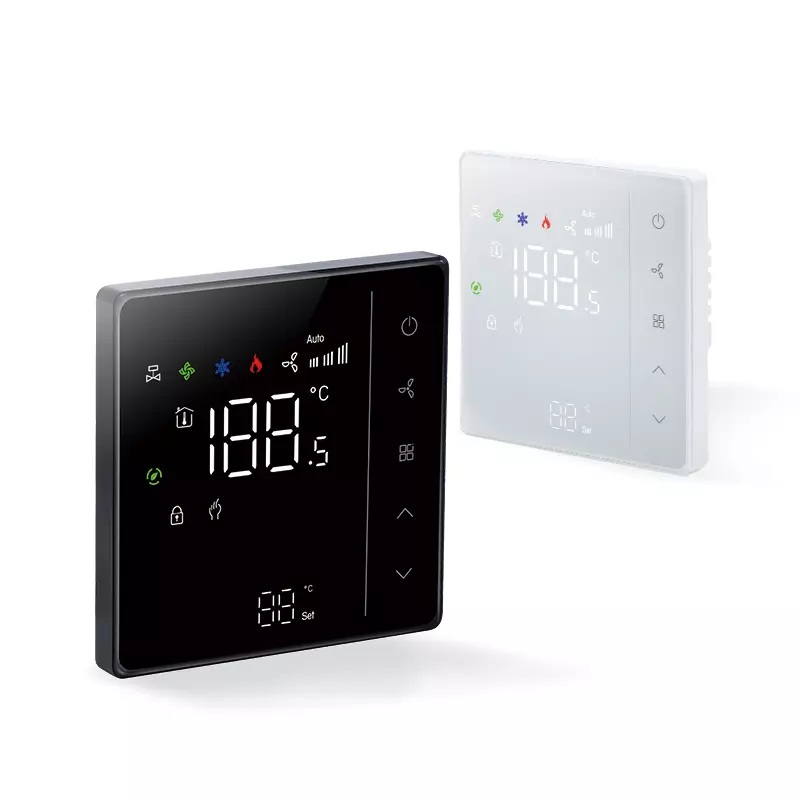

● Modern Touch Panel Design
Clean and professional appearance for commercial projects
>> Configuration Overview
| Item | Standard Configuration | Optional / Custom Configuration |
| Power Supply | 24VAC or 95–240VAC, 50/60Hz | —— |
| System Type | 2-pipe FCU system | 4-pipe FCU system |
| Fan Control | 3-speed fan (Low / Medium / High) | 0–10V modulating fan control |
| Modulating Output | 0–10V analog output | 0–10V analog output |
| Temperature Sensor | Built-in room sensor | External temperature sensor interface |
| Application Scope | Standard FCU HVAC applications | Project-based HVAC & automation systems |
| Customization Level | Standard product | OEM / project-based customization |

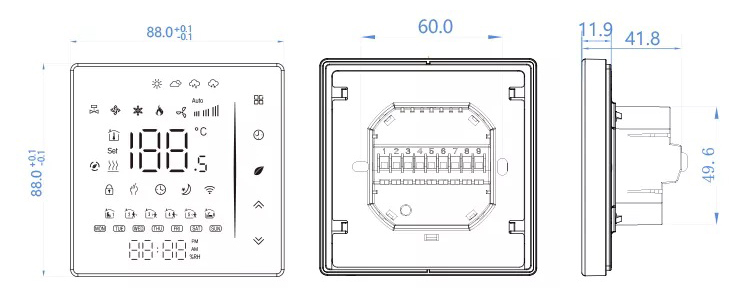

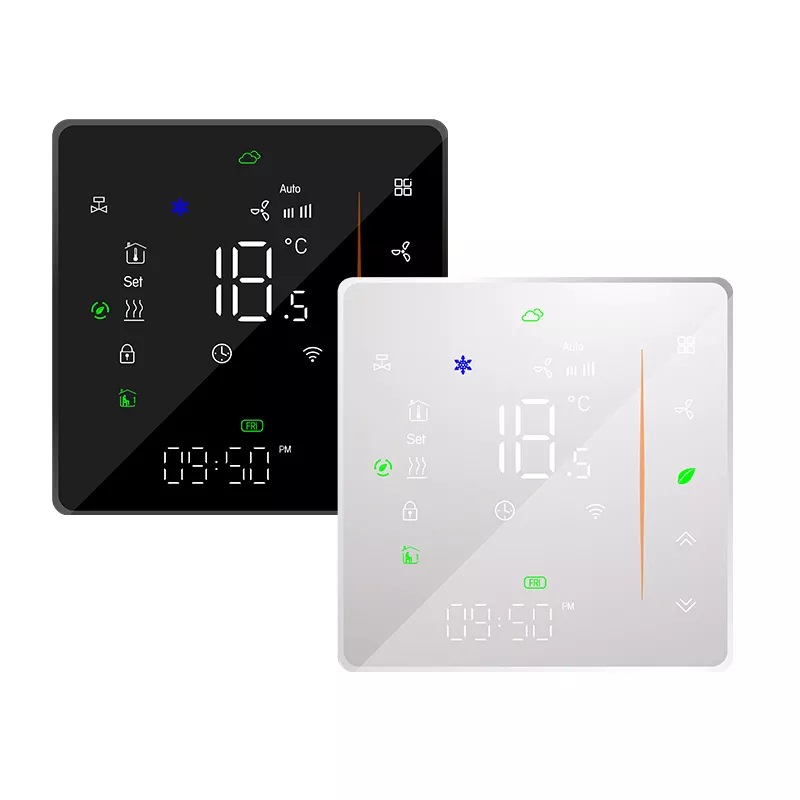

>> Product Details

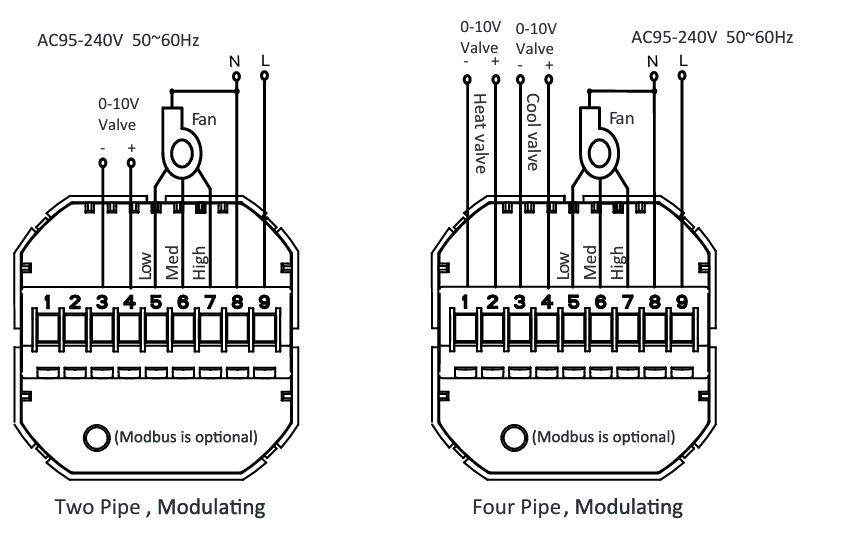

>> Wiring Diagram

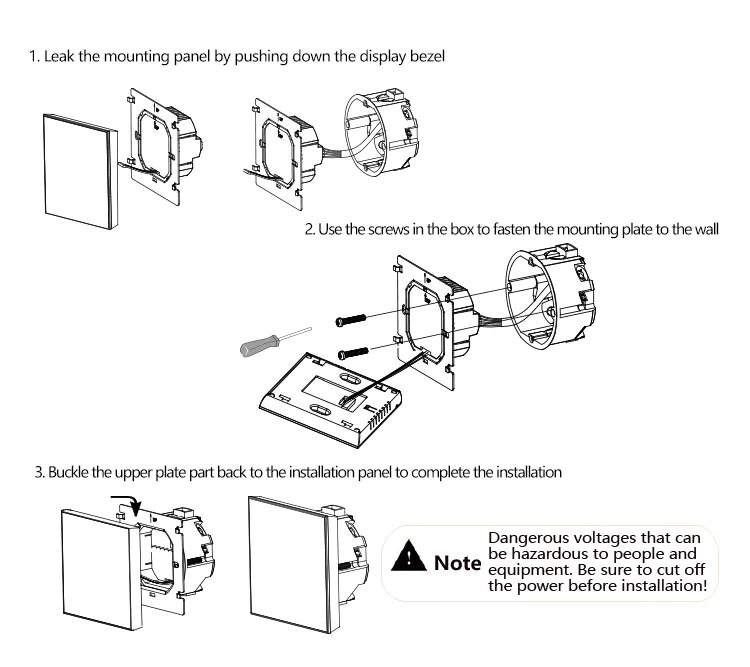

>> Easy Installation
