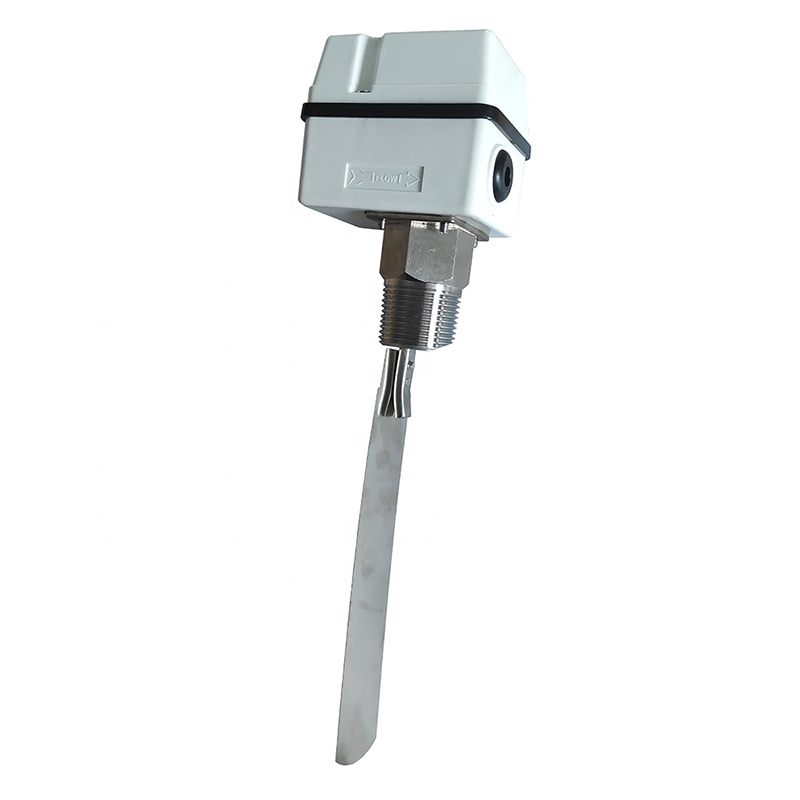

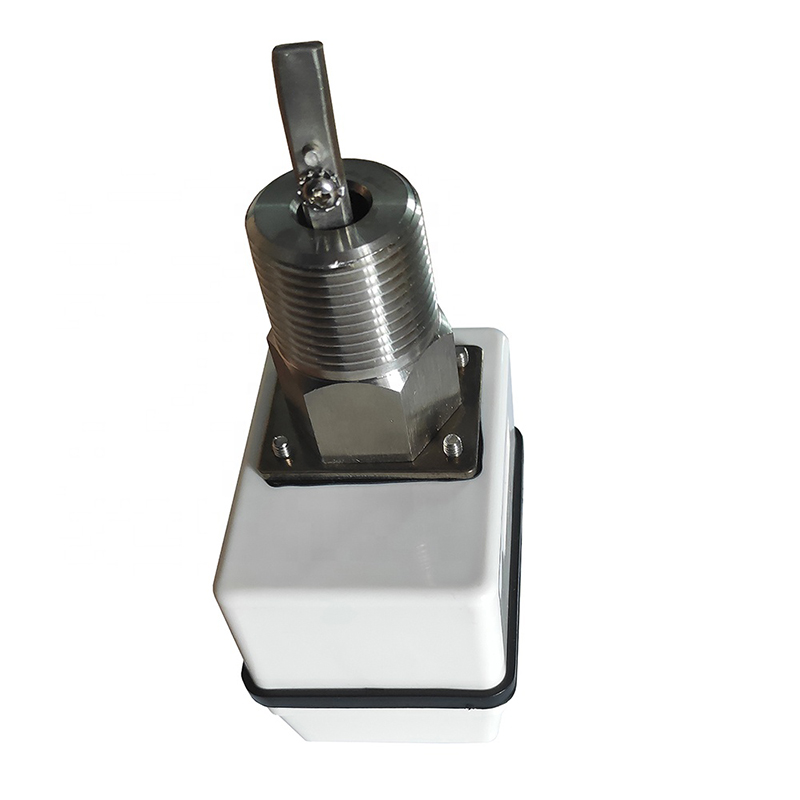

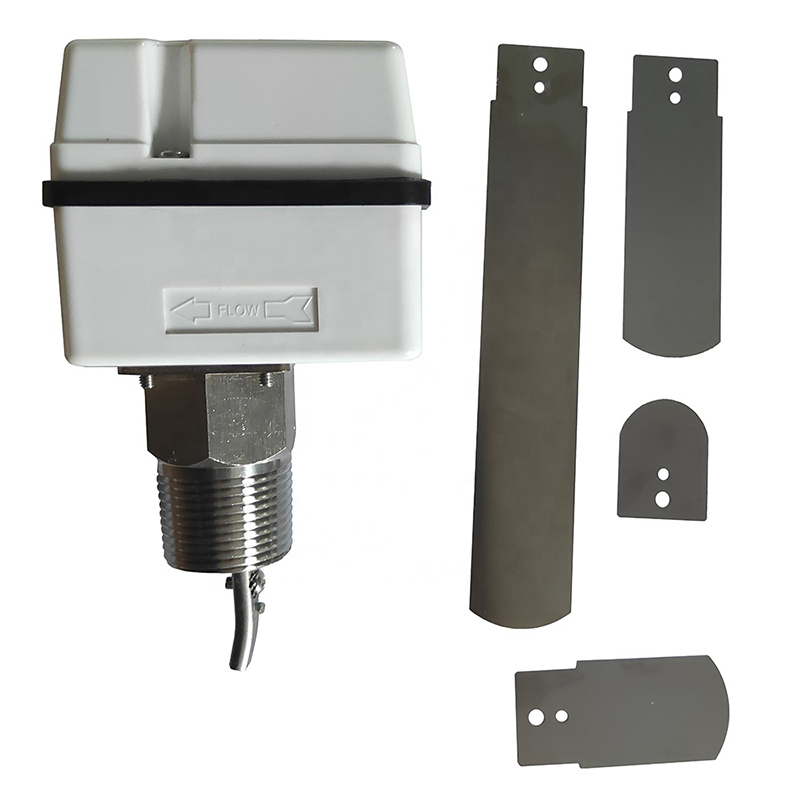

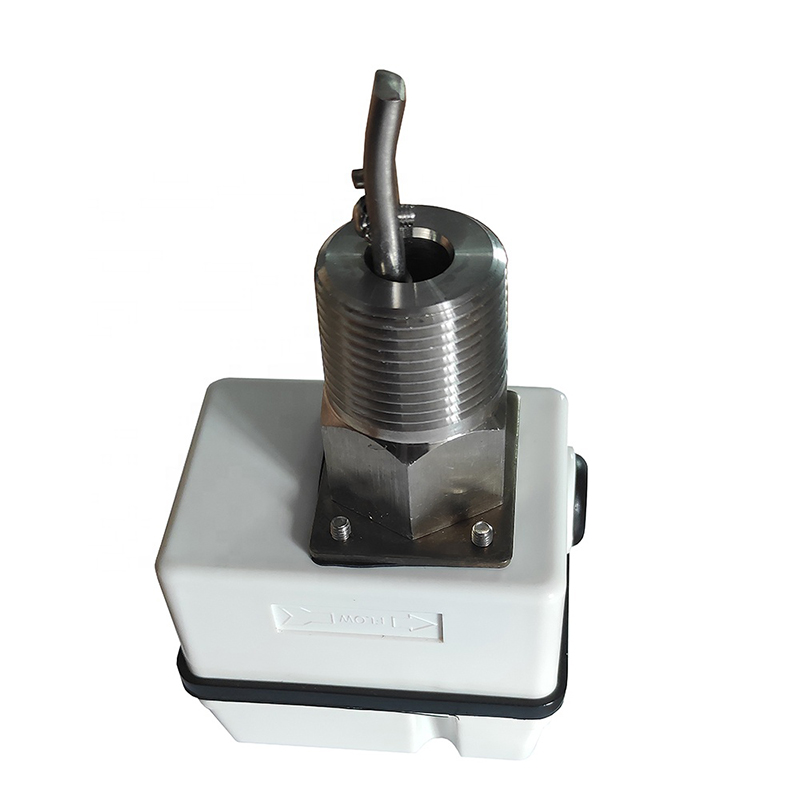

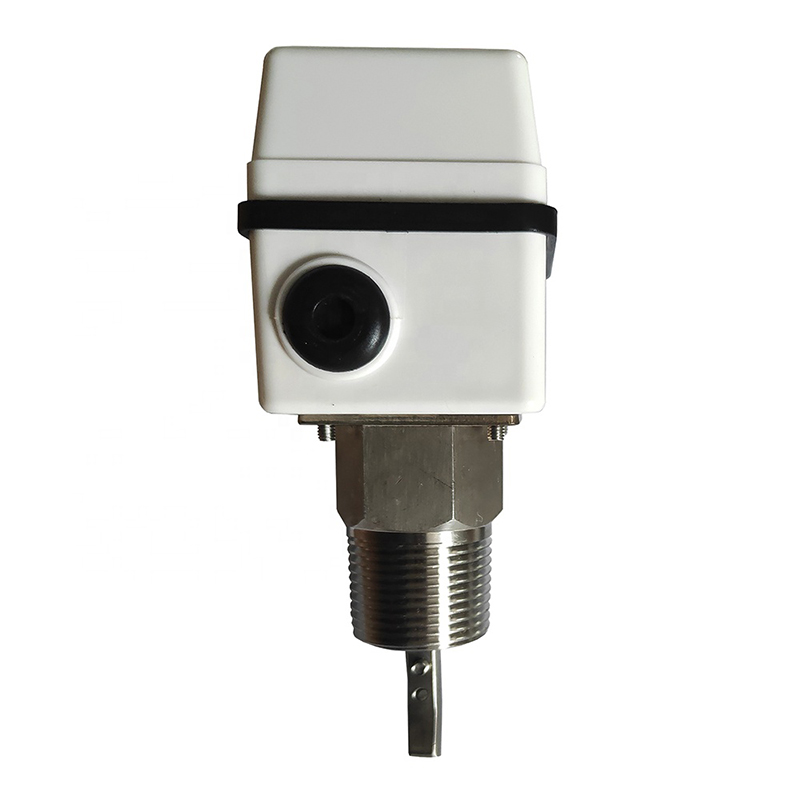

Waterproof IP55 Stainless Steel Water Flow Switch

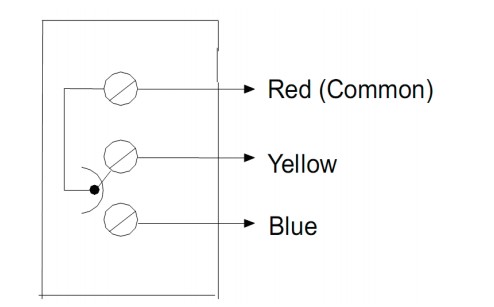

BTS-FS series flow switches are SPDT flow switches that are used in measuring and controlling the flow of the liquid in the pipe, as well as in the places where it needs chain effect or cutout protection. BTS-FS series flow switches use Micro switches, which have normally closed contacts and normally open contacts, which the customers can connect as needed.
1> BTS-FS series flow switches are target-type flow switches, which are mainly used to measure and control the flow of liquids flowing through pipelines, such as water, ethylene glycol, etc.
2> The typical application of the BTS-FS series flow switch is to use in the place where chain action or cut-off protection is required.

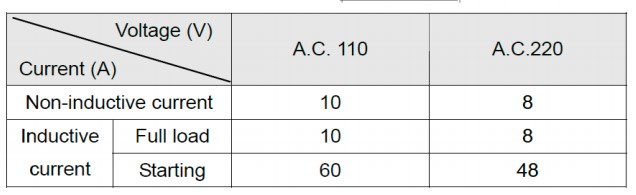

3> BTS-FS series flow switches are single-pole double-throw (SPDT) switches with a large load, which have the characteristics of fast action and ensure the instantaneousness of flow switches.
4> The shell of the BTS-FS flow switch adopts a fully sealed structure, and the internal components are all made of stainless steel to ensure that the flow switch is suitable for various environments.
>> Specifications
Ambient temperature : -20°C~50°C
Liquid temperature: -25°C~120 °C
Max liquid pressure: 1.5MPA

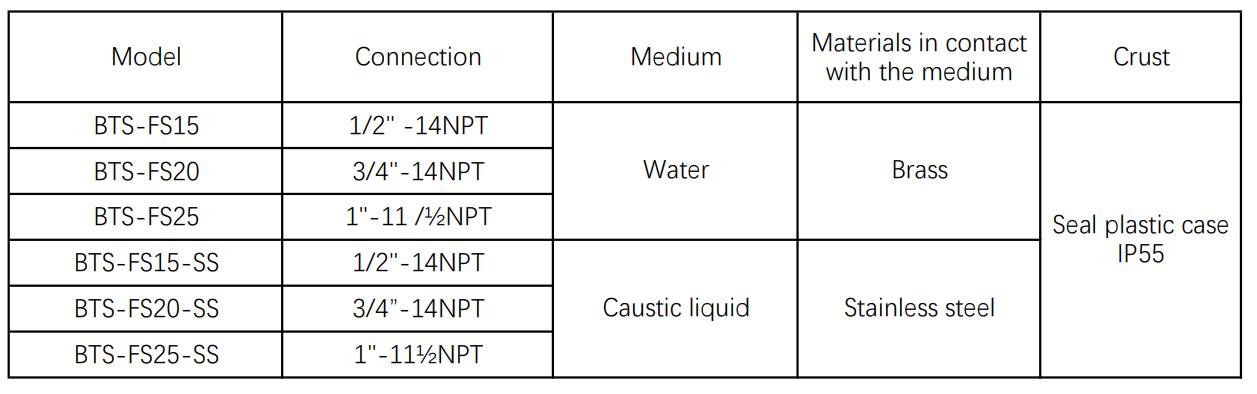

>> Models comparison table

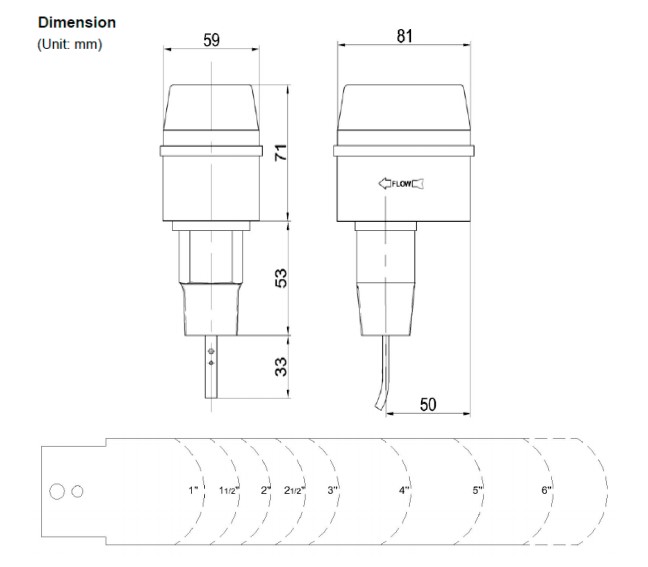

>> Dimension
>> Flow rates
