Factory Mechanical16A Digital Thermostat For Electric Floor Heating
Product ID : BT12-H3
Product Attributes :
- Voltage: 230VAC 50/60Hz(24VAC Option)
- The maximum switch
- power:3A/16A
- Power waste:<2VA
- Range of temperature: 5℃-40℃
- Ambient temperature: -5℃-50℃
- Protective casing: lP20
- External sensor: B=338010K@25℃
- Shell material: Flame-retardant
- PC Installation height:1.2M
Product Description

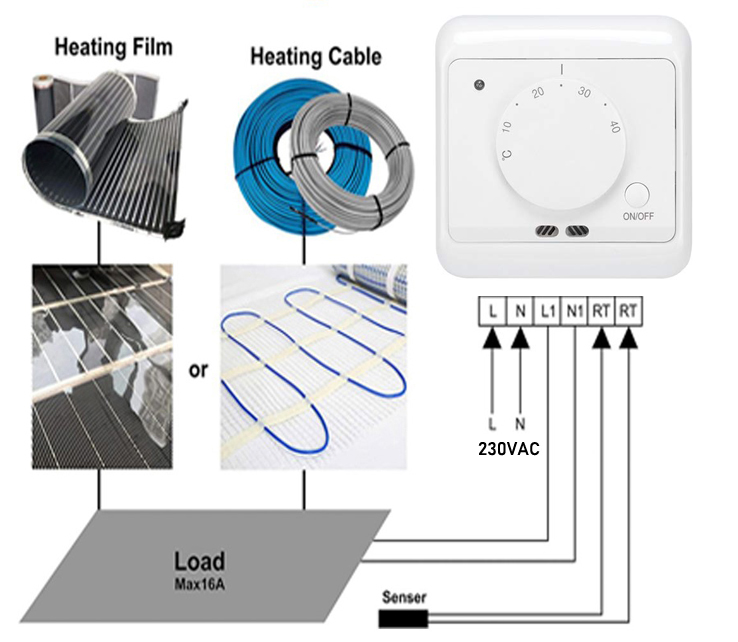

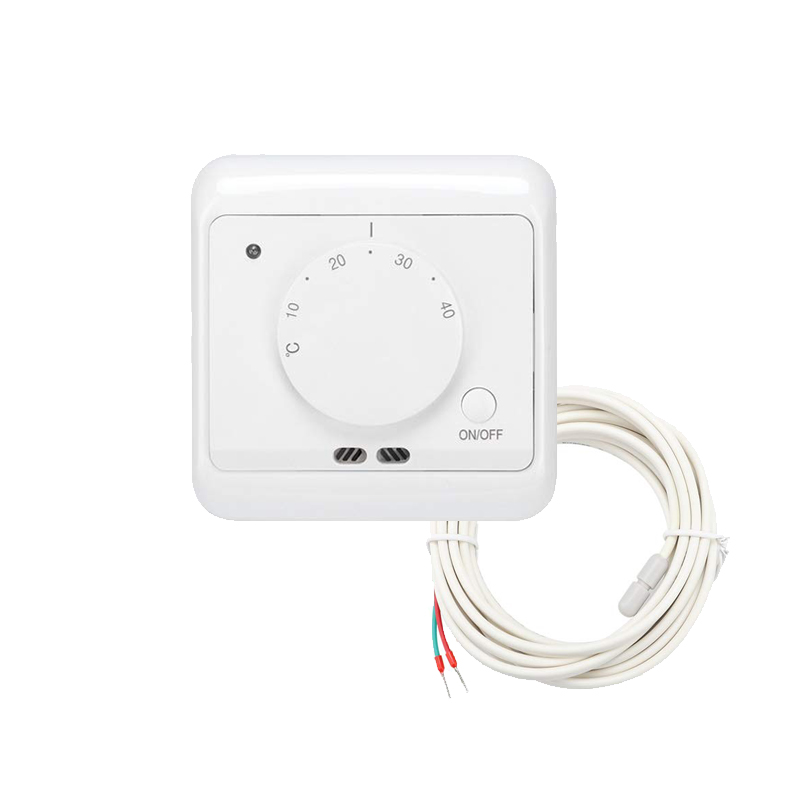

BT12-H3 is a classic mechanical thermostat suitable for electric floor heating applications. This thermostat is equipped with a 3-meter external sensor. In the past ten years of sales, it has won the market with its reliable quality and competitive price.
>> Product Video

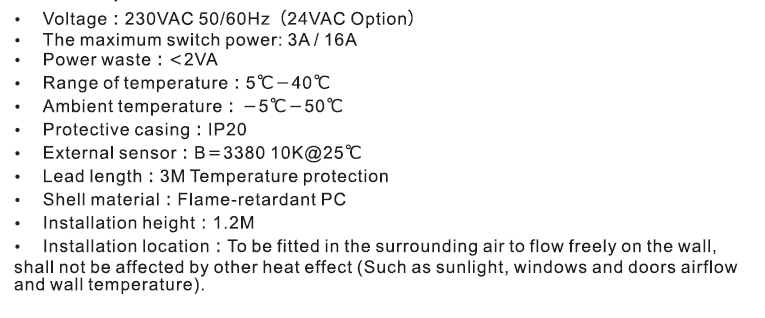

>> Product Parameter

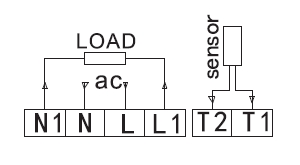

>> Wiring Diagram

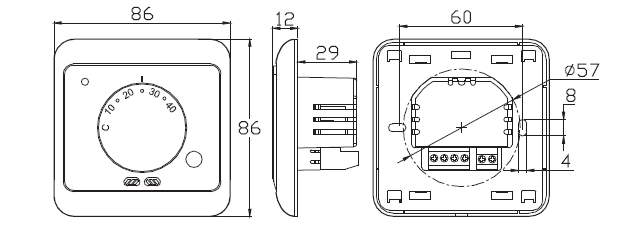

>> Dimension

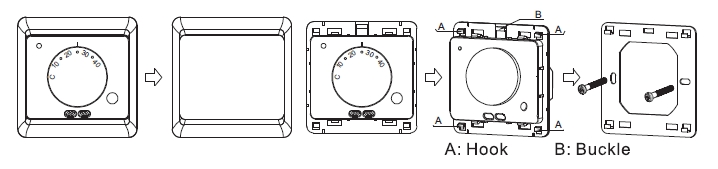

>> Installation
