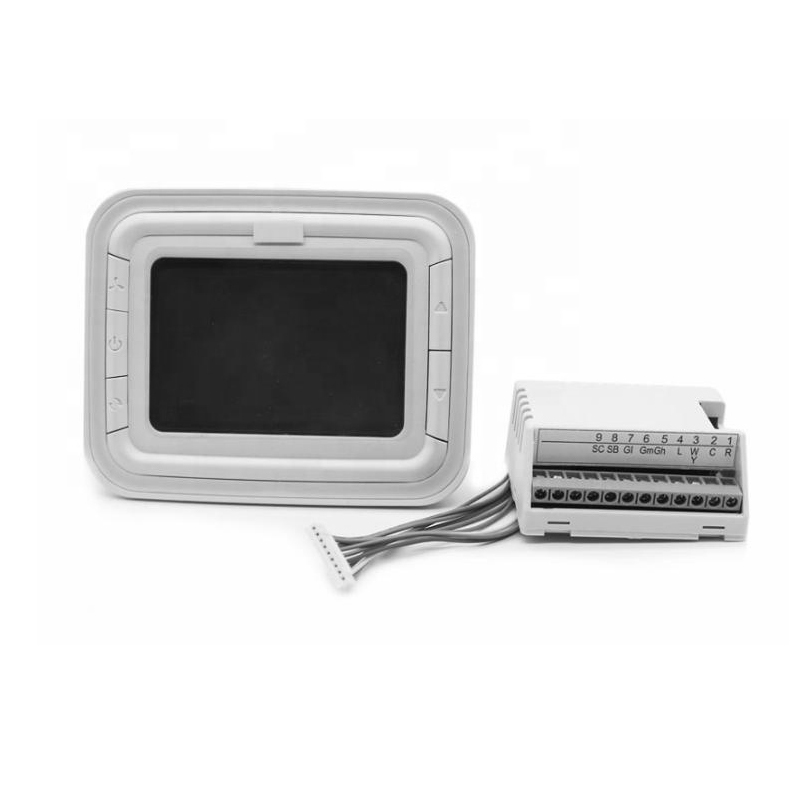

2 Pipe/ 4 Pipe 3 Fan Speed Halo T6861 Digital Thermostat

The Halo series T6861 digital thermostat is a classic and durable FCU controller, with green and blue large-screen display options, and vertical and horizontal frame options. Since its release, it has been the favorite room thermostat of end users.

This digital thermostat is designed for the application of a 3-speed fan and valves in the fan coil system.
Including:
          2-pipe cool only/heat only/manual changeover and
          4-pipe manual or automatic changeover
          Ventilation mode
          Manual or automatic 3-speed fan control

Water valve control
          Fan speed can be selected to automatic or manual
          3-speed control mode.
          In ventilation mode, the fan only support manual speed control.

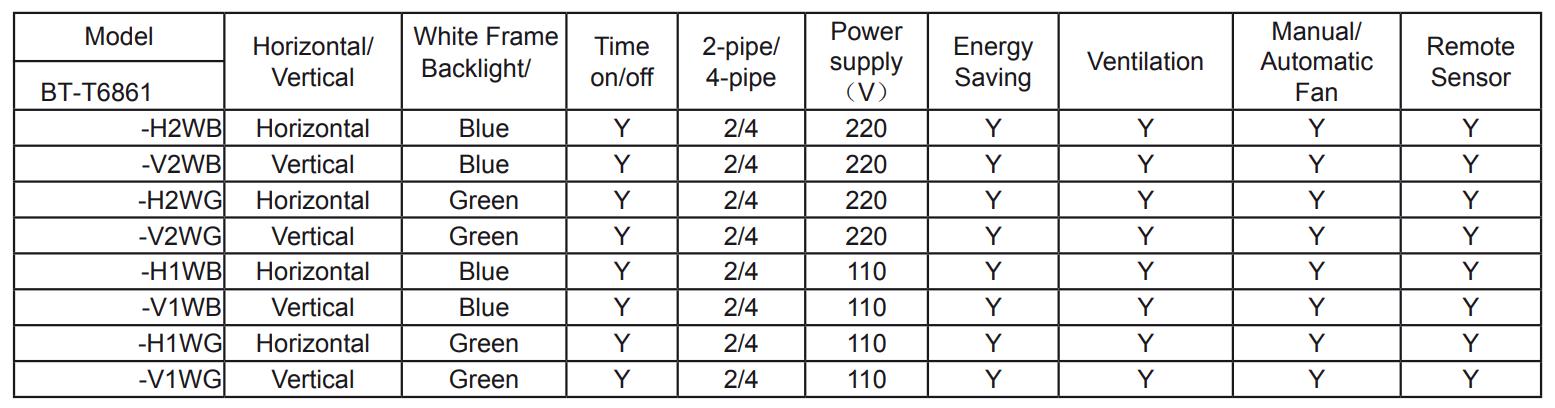

>> Model Summary

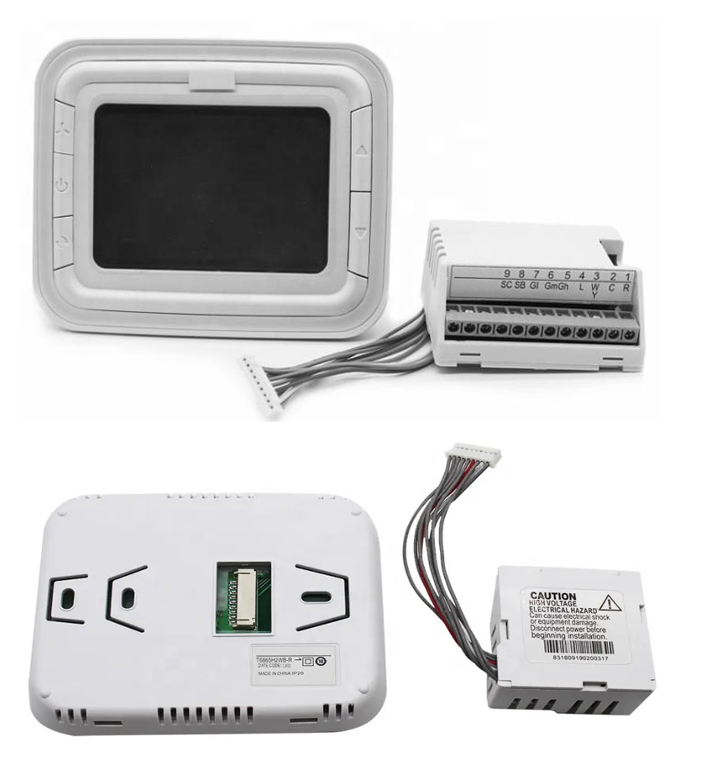

>> Product Detail

>> Key Features

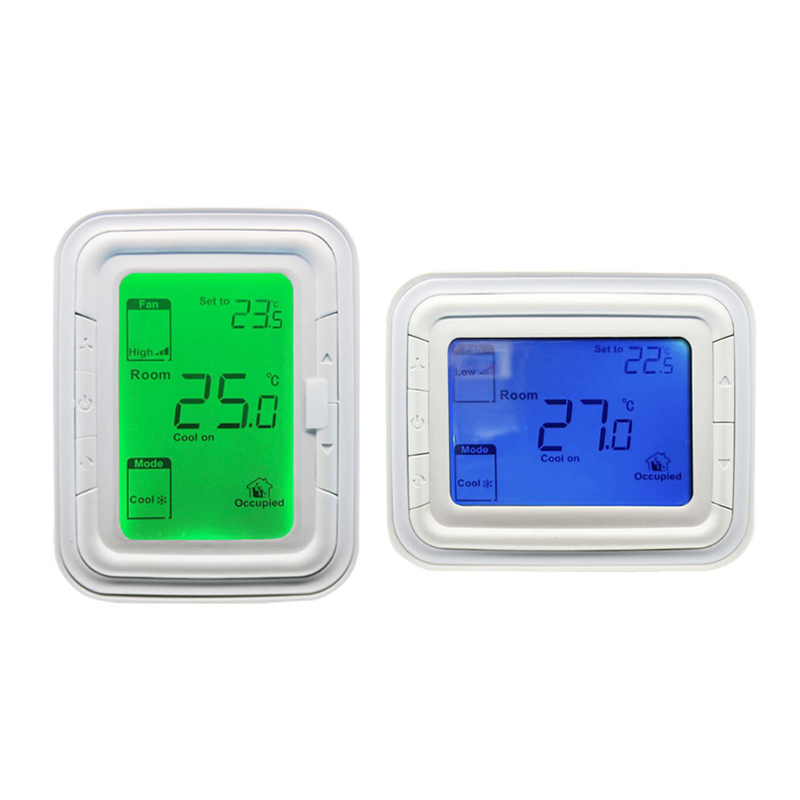

• * Horizontal and vertical models available for variant application
• * Slim design, direct installation on 86-size box

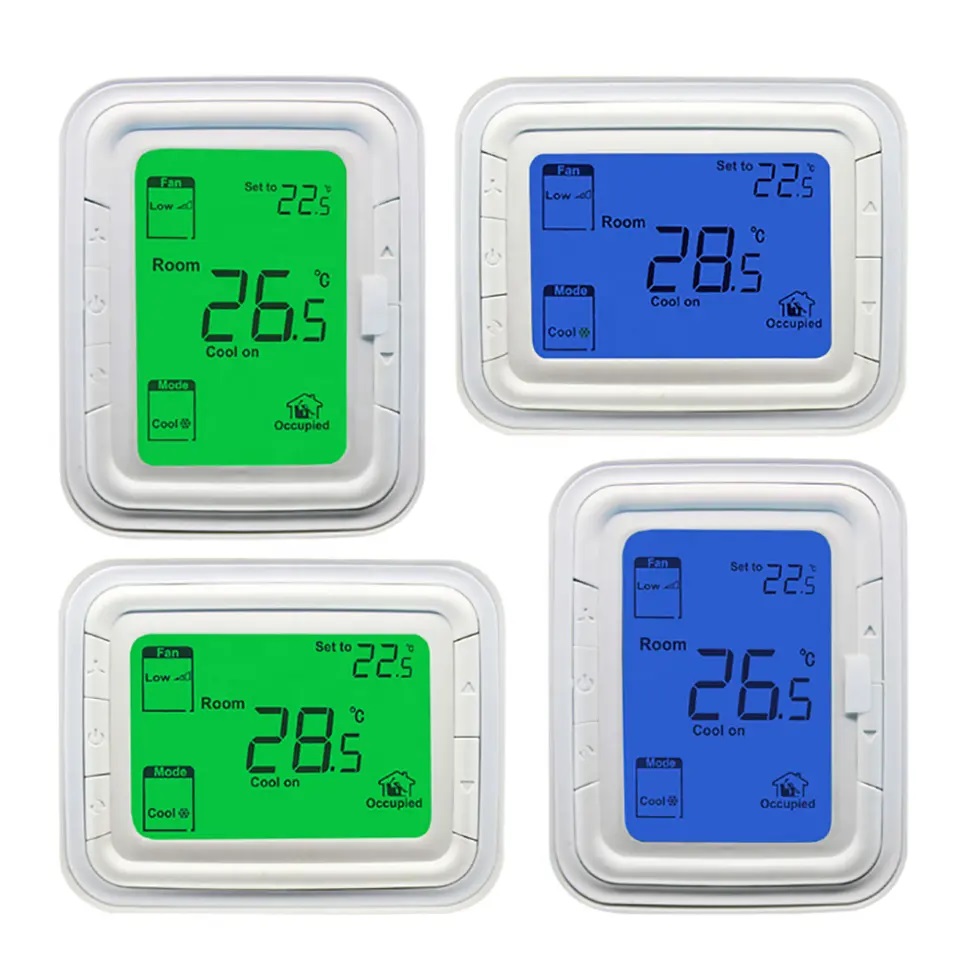

• * Stylish and elegant blue/green backlight
• * 2-pipe/4-pipe integrated into one unit with easy configuration
• * Big LCD display with English and icons
• * Easy to install and set-up
• * Remote temperature sensor

>> Applications
