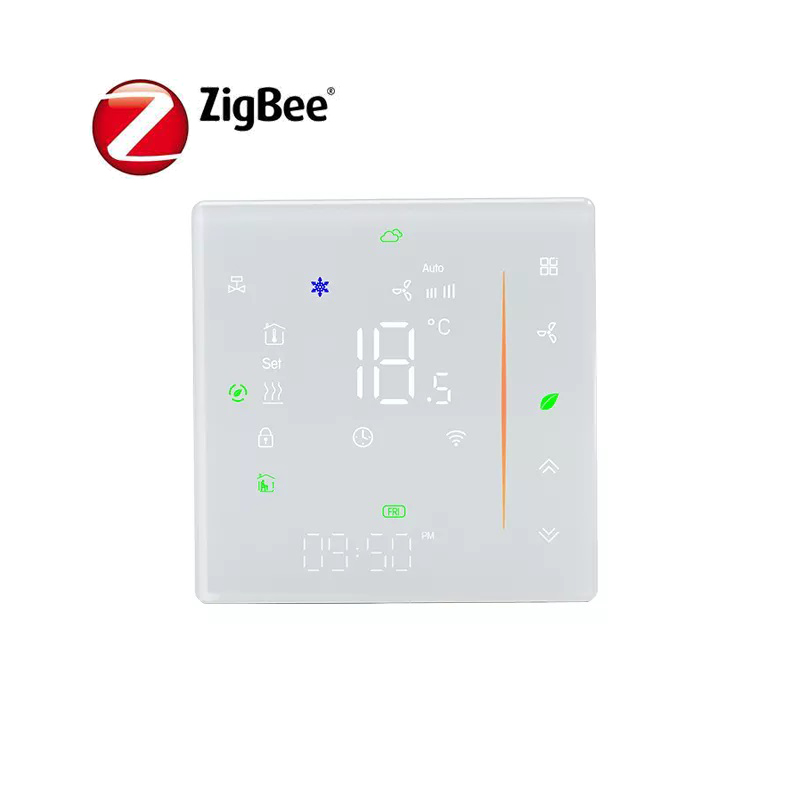

Smart Zigbee Thermostat For Fan Coil Unit Heating And Cooling

The BT01-ZB-FCU Zigbee fan coil thermostat is a smart room temperature controller designed for 2-pipe and 4-pipe FCU systems with 3-speed fan control, widely used in hotels, apartments, offices, and commercial buildings. It adopts Tuya Zigbee 2.0 wireless communication for stable and low-power smart control and must be used together with a Zigbee gateway (hub) for APP and system connection.

     ◆Key Features:

• ● Compatible with 2-pipe & 4-pipe fan coil unit (FCU) systems

• ● Supports 3-speed fan control (Low / Medium / High)

• ● Built-in Tuya Zigbee 2.0 wireless protocol

• ● Requires a Zigbee gateway for network, cloud, and APP control

• ● Accurate room temperature control for comfort and energy saving

• ● Suitable for smart HVAC and building automation projects

• ● Widely applied in hotels, residential, office, and commercial buildings

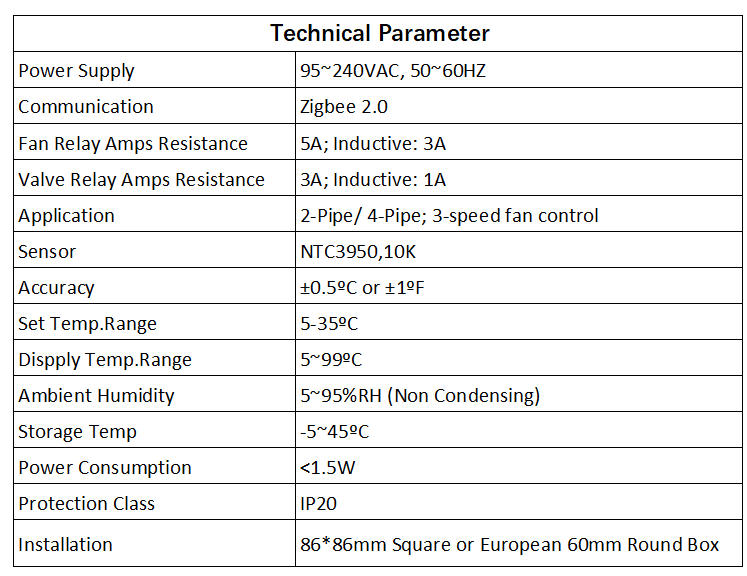

>> Technical Parameter

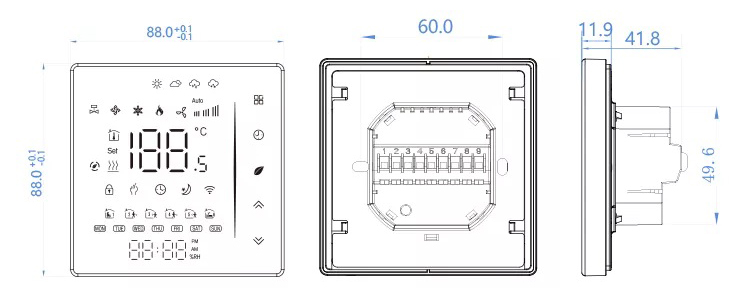

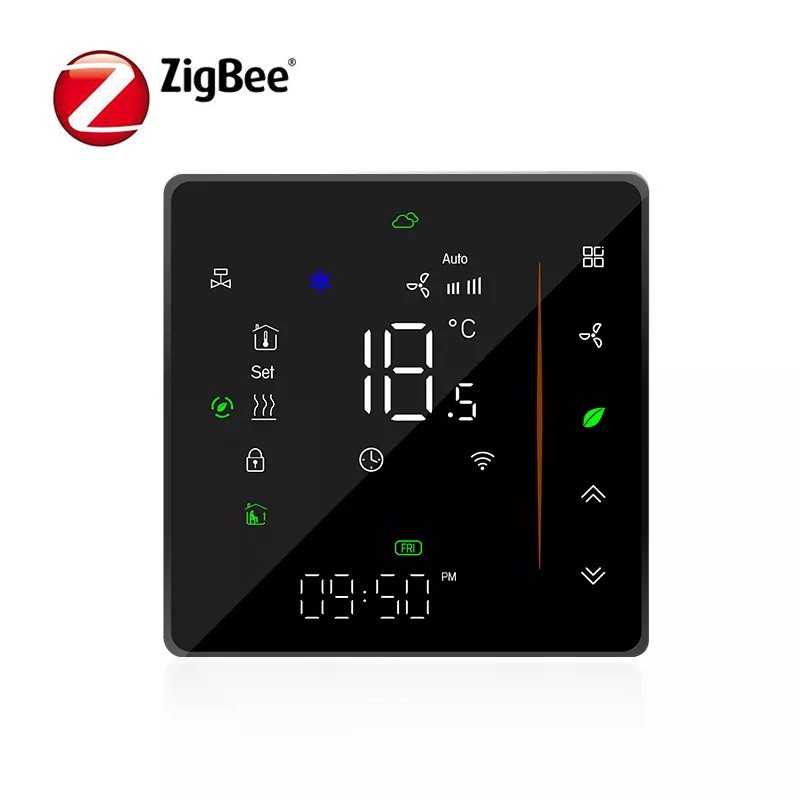

>> Detailed Images

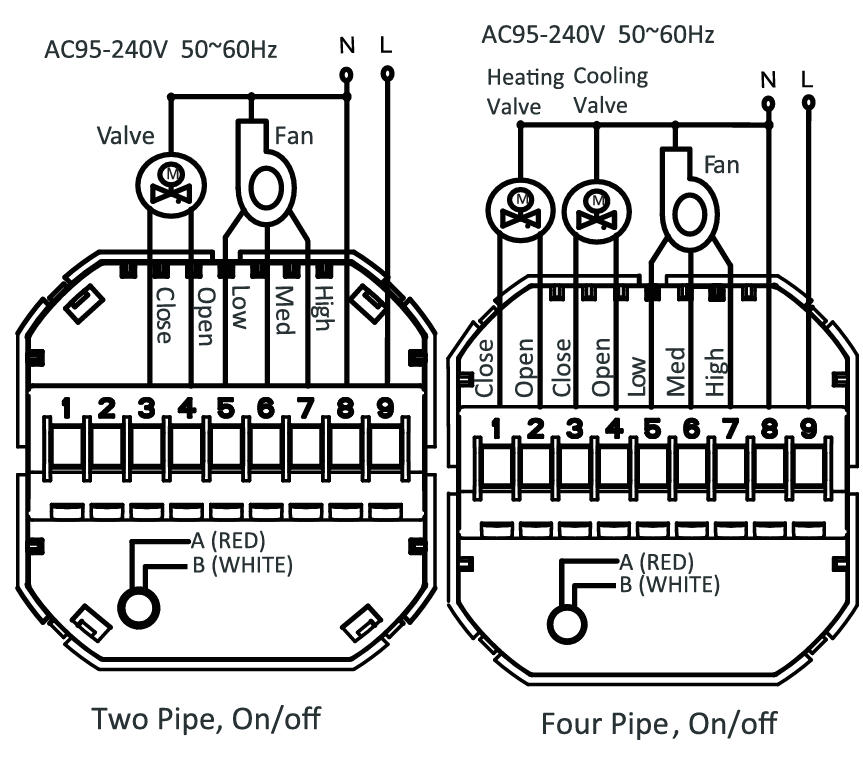

>> Wiring Diagram

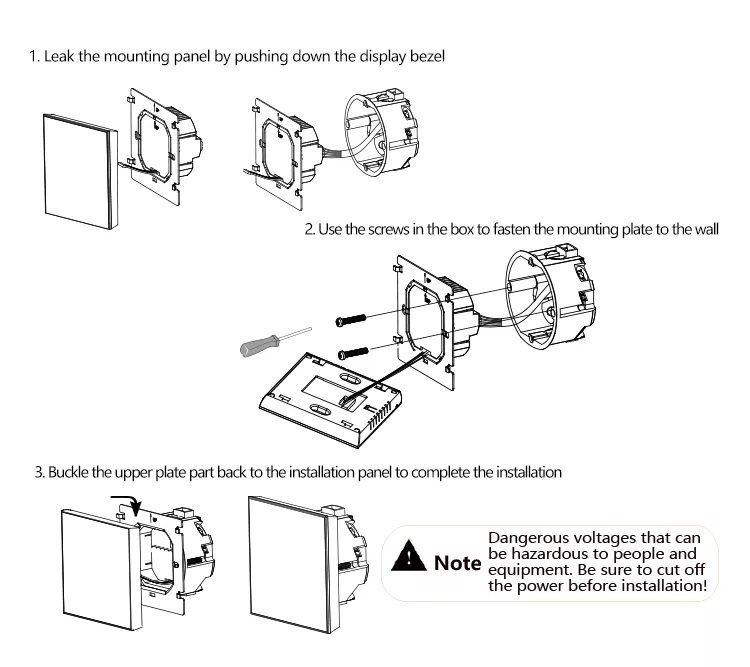

>> Easy Installation

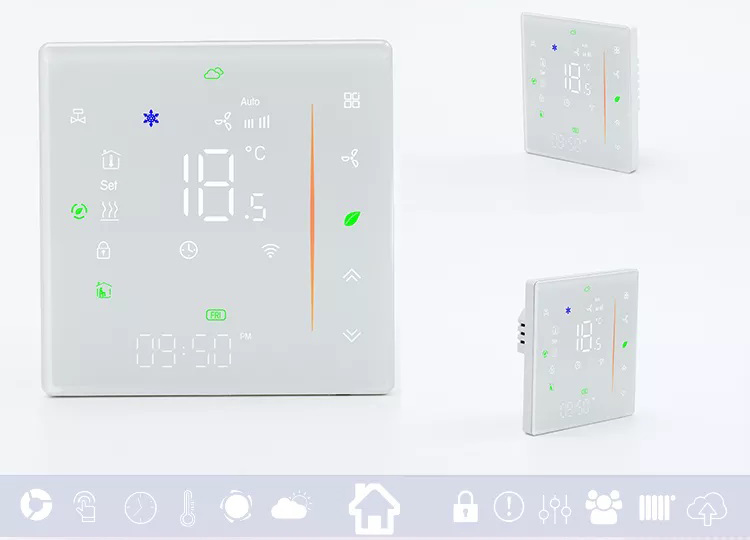

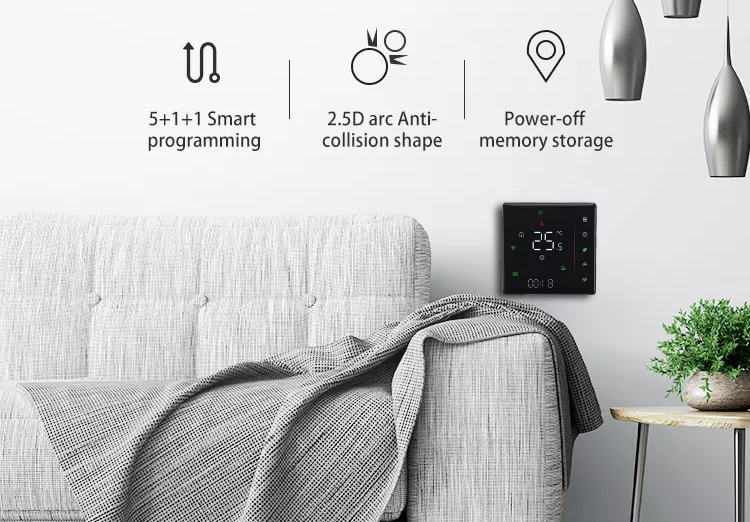

>> Fashion Design
