How does a smart thermostat with delayed fan off to maximizes heating efficiency?
What Is a Fan Run-Down Timer?
In HVAC systems, especially in colder months, energy efficiency and comfort go hand in hand. One often overlooked but highly effective feature found in many smart thermostats is the fan delay or run-down timer function.
This feature allows the fan to keep running for a short time after the heating system stops, helping to make full use of residual heat within the system. Though subtle, this small automation can lead to noticeable gains in comfort and cost savings.
When and How Does the Fan Delay Work?
The fan delay function is generally used in heating mode, not in cooling. Most systems disable it during cooling to avoid blowing moisture or condensation into the indoor space.
Here’s how the fan run-down timer typically works:
1. Heating Starts:
The thermostat activates the heating source (such as an FCU or electric heater) and runs the fan at the selected speed.
2. Setpoint Reached – Heating Stops:
Once the room reaches the target temperature, the thermostat switches the controller to standby.
3. Fan Continues for 180 Seconds:
Instead of stopping immediately, the fan continues running for an additional 180 seconds to blow out remaining heat from the coil or heat exchanger.
4. Fan Turns Off Automatically:
After this delay period, the fan shuts down.
5. Early Wake-Up Logic:
If the thermostat is powered back on within those 180 seconds, it cancels the delay and resumes normal operation seamlessly.
This process is fully automatic and requires no input from the user — a hallmark of thoughtful HVAC control design.
Why does Fan Delay Matter?
1. Better Energy Efficiency
By using residual heat that would otherwise be wasted, the system lowers overall energy consumption, and that means reduced bills.
2. Improved Comfort
A sudden fan shutdown can cause a sharp temperature drop. The run-down period ensures warm air continues circulating, helping to maintain a stable and comfortable indoor temperature.
3. Longer Equipment Life
Reducing frequent start-stop cycles minimizes wear on the fan motor and extends the life of mechanical components.
4. No Manual Intervention
Once set, the thermostat handles this process automatically, giving users peace of mind and consistent results.
Is “Fan Delay” the Same as a “Run-Down Timer”?
Yes — both terms refer to the same function. Some regions (like the UK or Europe) prefer the term run-down timer, while fan delay is commonly used in North America. Regardless of terminology, the purpose is the same: keep the fan running briefly after heating stops to improve system efficiency.

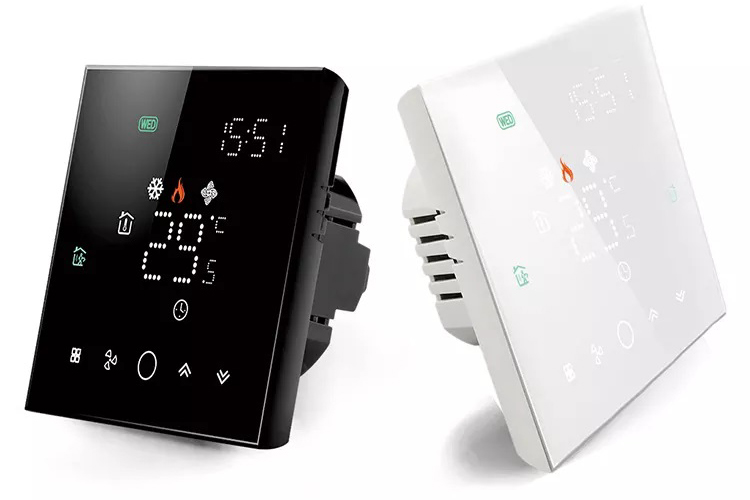

Featured Product: Beris BT02-FCU Smart Thermostat
The BT02-FCU smart thermostat from Beris Tech is designed specifically for Fan Coil Unit systems and comes with a built-in 180-second fan run-down timer. In heating mode, this ensures no heat is left trapped inside the system and improves overall energy utilization.
BT02-FCU Highlights:
- Supports fan delay logic in heating mode
- Adjustable fan speeds
- Elegant black touch display

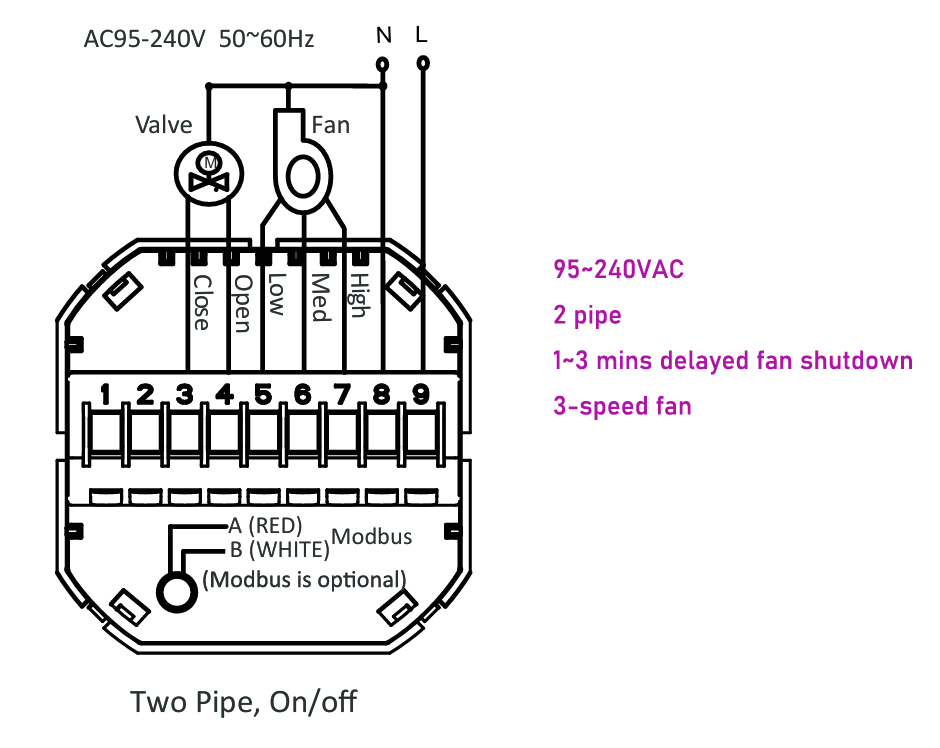

- Compatible with 2-pipe FCU systems
- Optional Wi-Fi and Modbus connectivity
Conclusion: Small Logic, Big Results
Smart HVAC control isn’t just about remote access or colorful displays — it’s about how intelligently your system behaves in real-world conditions. A thermostat with fan delay or a run-down timer is a small investment with significant returns in comfort, energy savings, and system durability.
Whether you're upgrading a hotel, office, or residential unit, make sure to choose a thermostat that makes the most out of every watt of heat, like the Beris BT02-FCU.
Ready to optimize your heating system? Learn more about the BT02-FCU thermostat here, or contact our team for technical support and pricing.
