FCU Thermostat for Hotel Projects: Selection, Wiring & BMS Integration Guide

  ◆ Introduction

Hotel HVAC systems rely heavily on fan coil units (FCU) to provide independent temperature control for each room.

Choosing the right FCU thermostat is not just about temperature adjustment—it directly affects guest comfort, energy efficiency, and system stability.

In this guide, we will walk you through how to select the right FCU thermostat for hotel projects, including system types, wiring logic, and BMS integration.

    Why Hotels Use FCU Thermostats？

Fan coil units are widely used in hotels because they offer:

•   ● Individual room temperature control
•   ● Energy-saving operation with keycard systems
•   ● Simple maintenance and easy replacement

Compared with central control systems, FCU thermostats allow flexible room-by-room management, which is critical in hotel operations.

    Key Selection Factors for Hotel FCU Thermostats

Choosing the wrong thermostat can lead to installation issues or system mismatch. Here are the key factors to consider:

1. 2-pipe vs 4-pipe system

The first step is to confirm your FCU system type.

Learn more here:

2-pipe vs 4-pipe FCU thermostat

•   ● 2-pipe: cooling or heating (seasonal switching)
•   ● 4-pipe: simultaneous cooling and heating

2. Fan type: 3-speed or 0–10V

Fan control affects comfort and energy efficiency.

Learn more here:

3-speed vs 0–10V fan control thermostat

•   ● 3-speed: standard and cost-effective
•   ● 0–10V: smoother control for high-end projects

3. Valve type: On/Off or Modulating

•   ● On/Off valve: simple and widely used
•   ● Modulating valve (0–10V): precise temperature control

4. Keycard / Occupancy input (Important for hotels)

Most hotel projects require:

•   ● Keycard input (room card system)
•   ● Occupancy detection

This allows the thermostat to switch to energy-saving mode when the guest leaves the room.

▷ This is a critical feature often overlooked during selection.

5. BMS communication (Modbus or BACnet)

If your project involves a building management system (BMS), a communication protocol is essential.

Learn more here:

Modbus vs BACnet thermostat comparison

•   ● Modbus: simple, cost-effective, widely used
•   ● BACnet: advanced integration for large projects

■ Typical Wiring for Hotel FCU Thermostats

Understanding the wiring helps ensure compatibility with your system.

A typical hotel FCU thermostat may include:

•   ● Fan control (L / H / M / Low-Med-High speeds)
•   ● Valve control (cooling / heating valve)
•   ● Keycard input (dry contact)
•   ● External temperature sensor (optional)

In many hotel projects, the thermostat works together with:

•   ● Keycard switches
•   ● Door/window contacts
•   ● BMS system

Always confirm wiring before selecting a model to avoid installation issues.

Recommended Thermostat Models for Hotel Projects

Based on different project requirements, here are some typical options:

▶ Beris Tech BT03 – For BMS & Commercial Projects

Best for:

•   ● Hotels with BMS integration
•   ● Projects requiring Modbus or BACnet
•   ● 2-pipe / 4-pipe systems

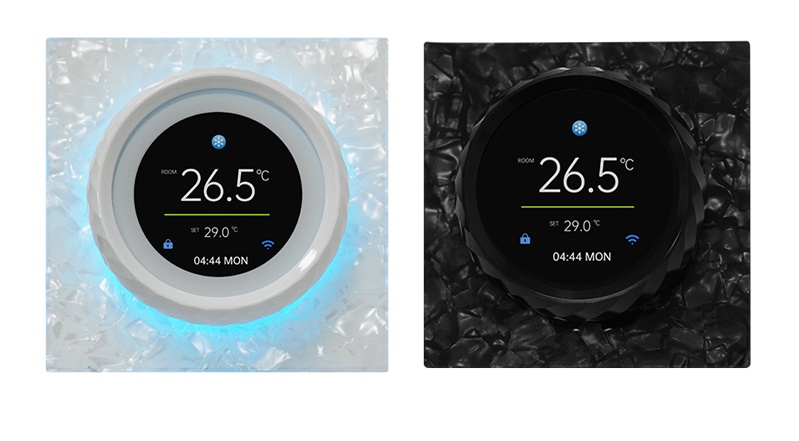

▶ Beris Tech BT14 – For High-End Hotel Rooms

Best for:

•   ● Premium hotels
•   ● Modern interior design
•   ● Projects requiring aesthetic appearance

▶ Beris Tech BT01 – For Cost-Sensitive Projects

Best for:

•   ● Budget hotel projects
•   ● Large volume orders
•   ● Standard FCU control

Common Mistakes in Hotel Thermostat Selection

Avoid these common issues:

•   ● Choosing the wrong system type (2-pipe vs 4-pipe)
•   ● Ignoring keycard integration requirements
•   ● Selecting incompatible communication protocols
•   ● Not confirming wiring details before purchase

These mistakes can lead to installation delays and increased project costs.

Not Sure Which Thermostat Fits Your Project?

If you're working on a hotel project and need help selecting the right model, we can assist you.

Just share:

•   ● FCU system type (2-pipe or 4-pipe)
•   ● Fan type (3-speed or 0–10V)
•   ● Valve type
•   ● BMS requirement (Modbus / BACnet)

We will recommend suitable models within 24 hours.
