Digital Thermostats
Top 10 FCU Thermostats for WiFi, BACnet, Modbus and 0–10V Control
Choosing the right FCU thermostat depends on the fan coil configuration, fan type, valve output, communication protocol and project voltage. Common options include 2-pipe and 4-pipe systems, 3-speed or 0–10V fan control, on/off or 0–10V valve control, and WiFi, BACnet or Modbus communication.
Fan coil thermostats used in commercial FCU (Fan Coil Unit) systems are designed to control fan speed and valve operation in hydronic HVAC applications. Unlike typical residential thermostats, FCU thermostats must match the piping configuration (2-pipe or 4-pipe), valve type and power supply used in the project.
This guide focuses on thermostats suitable for commercial fan coil systems in hotels, offices and renovation projects. Before selecting a model, it is important to confirm key parameters such as fan control type, valve control method and system compatibility.
Before selecting a model, it's important to understand key differences such as
2-pipe vs 4-pipe FCU systems and 3-speed vs 0–10V fan control.
Key Factors When Selecting an FCU Thermostat
| Parameter | Options | Why It Matters in FCU Projects |
|---|---|---|
| Pipe System | 2-pipe / 4-pipe | Determines cooling/heating control logic |
| Fan Control | 3-speed / 0-10V (EC fan) | Impacts comfort and energy efficiency |
| Valve Type | On/Off / 0-10V / 3-point | Must match the FCU valve actuator |
| Power Supply | 24VAC / 230VAC | Depends on project electrical design |
| Changeover | Manual / Automatic (water sensor) | Important in 2-pipe systems |
| BMS Integration | None / Modbus / BACnet | Required in centralized building control |
| Application | Hotel / Office / Retrofit | Affects feature requirements (keycard, lockout, etc.) |
Before reviewing the product list below, confirm the above parameters in your project. Selecting an FCU thermostat without matching the pipe configuration or valve type may lead to incorrect operation.
If you're not sure how to choose, you can also check our detailed selection guide. How to Choose the Right FCU Thermostat for Your HVAC System?
1. How to Choose WiFi, BACnet, Modbus and 0–10V FCU Thermostats
Different control options are designed for different project requirements.
| Option | Best For | Main Benefit |
|---|---|---|
| WiFi | Apartments, villas and small hotels | Remote control through a mobile app |
| BACnet | Hotels, offices and commercial BMS projects | Centralized monitoring and room control |
| Modbus | PLC, gateway and HVAC automation systems | Simple and flexible system integration |
| 0–10V | EC fans and modulating valves | Smoother and more precise control |
WiFi FCU thermostats are suitable when users need remote control through Tuya or Smart Life without connecting the thermostat to a central BMS.
BACnet FCU thermostats are commonly used in hotels, offices and commercial buildings where multiple room thermostats need to be monitored through a building management system.
Modbus FCU thermostats are suitable for projects using PLCs, gateways or Modbus RTU control networks.
If your project requires BMS integration, see our detailed BACnet vs Modbus thermostat comparison.
For 0–10V control, confirm the fan and valve signals separately:
- ● Fan: 3-speed or 0–10V
- ● Valve: on/off or 0–10V
These options are selected according to the project configuration and should not be assumed to work simultaneously.
Before selecting a model, confirm the pipe system, fan type, valve signal, communication protocol and power supply.
Not sure whether your FCU uses an on/off or modulating valve? See our On/Off vs 0–10V valve control guide.
▶ Explore FCU Thermostat Options
- ● WiFi FCU Thermostats – For remote app control in apartments, hotels and light commercial projects
- ● BACnet FCU Thermostats – For centralized BMS monitoring and room control
- ● Modbus FCU Thermostats – For PLC, gateway and HVAC automation integration
- ● 0–10V FCU Thermostats – For EC fans and modulating valve applications
2. Top FCU Thermostat Options for Different HVAC Projects
Choosing the best fan coil thermostat can be a daunting task given the variety of options available in the market. We have meticulously selected the top 10 fan coil thermostats based on performance, features, user reviews, and overall value. Below is a comprehensive overview of the selection criteria and a brief introduction to each top thermostat.
3. Top 10 Fan Coil Thermostats for Commercial Projects

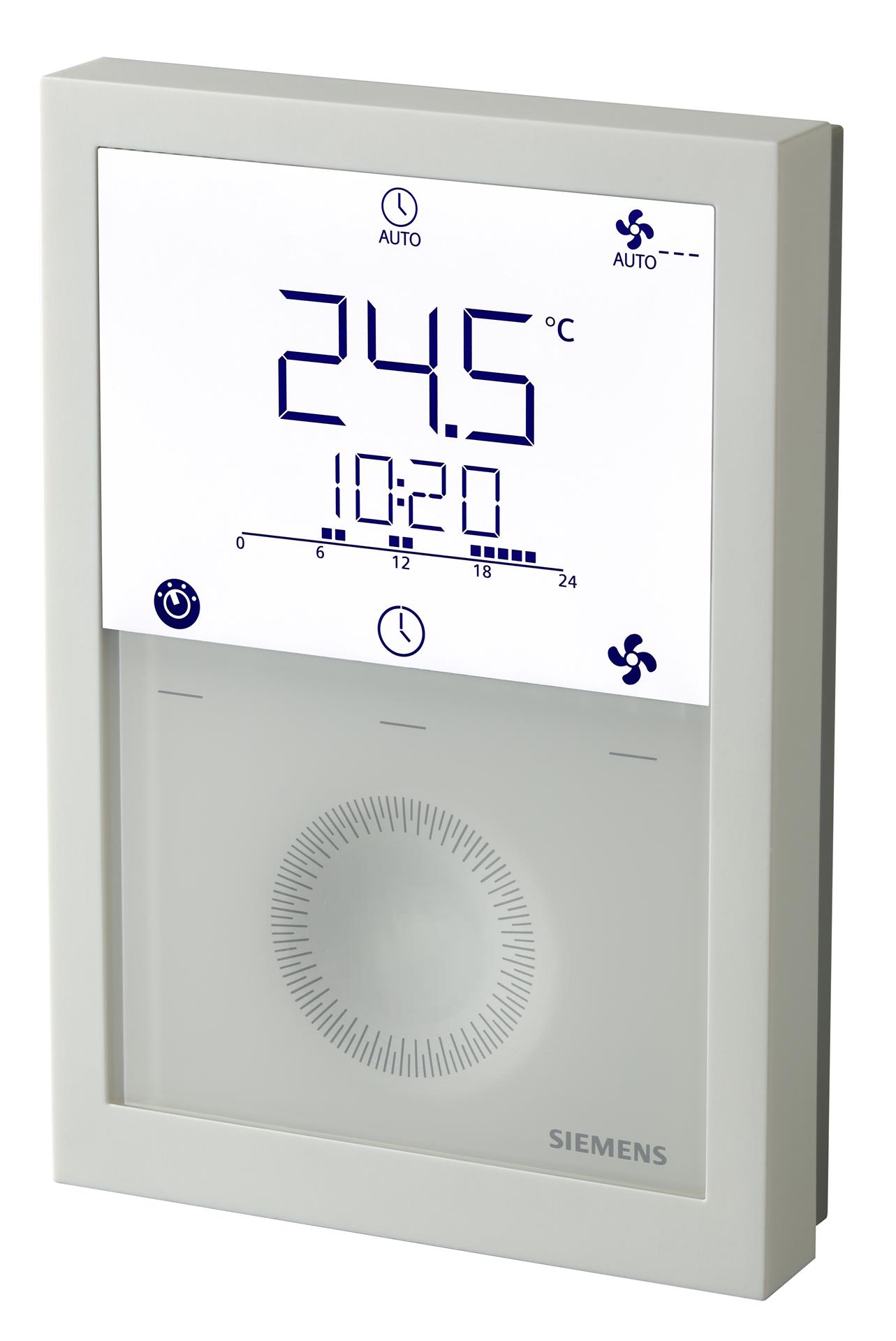

(1) Siemens RDG200 Series
Consider for: commercial room-control projects.
The Siemens RDG200 range covers fan coil and other HVAC applications. It offers a useful starting point for projects that require room control within a wider commercial building specification.
Select the exact version according to the application, fan and valve outputs, power supply and communication requirements. Features available across the range should not be assumed to be present in every model.

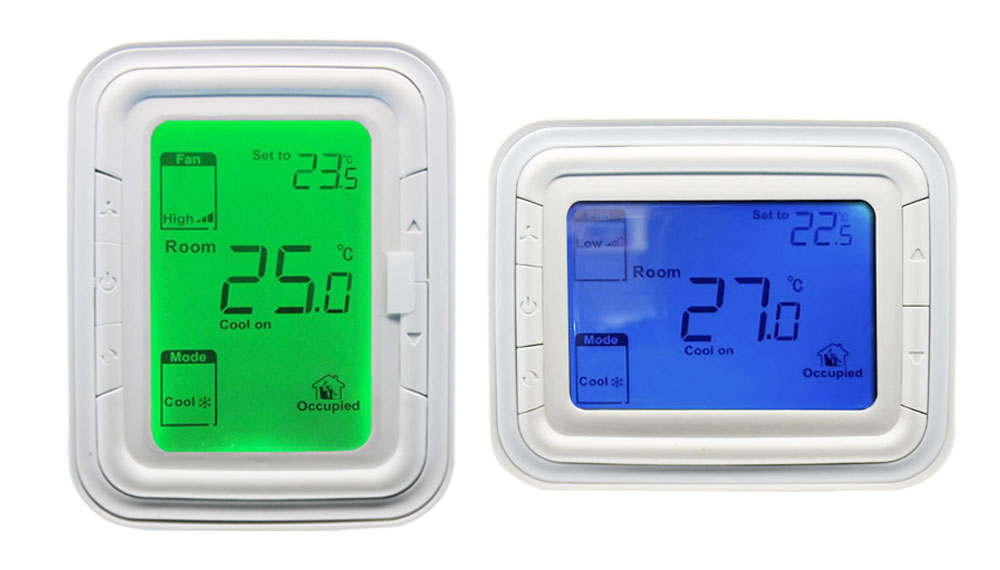

(2) Honeywell T6861 Series
Best for: Hotel FCU replacement & standard commercial projects
The Honeywell T6861 series is a dedicated fan coil thermostat range. It is worth considering when replacing an existing T6861 or selecting a controller for a conventional FCU installation.
Check the full model number before ordering. Supply voltage, mounting format and system configuration can differ between versions. A matching series name does not establish wiring compatibility.
For replacement considerations, see our Honeywell T6861 replacement guide.

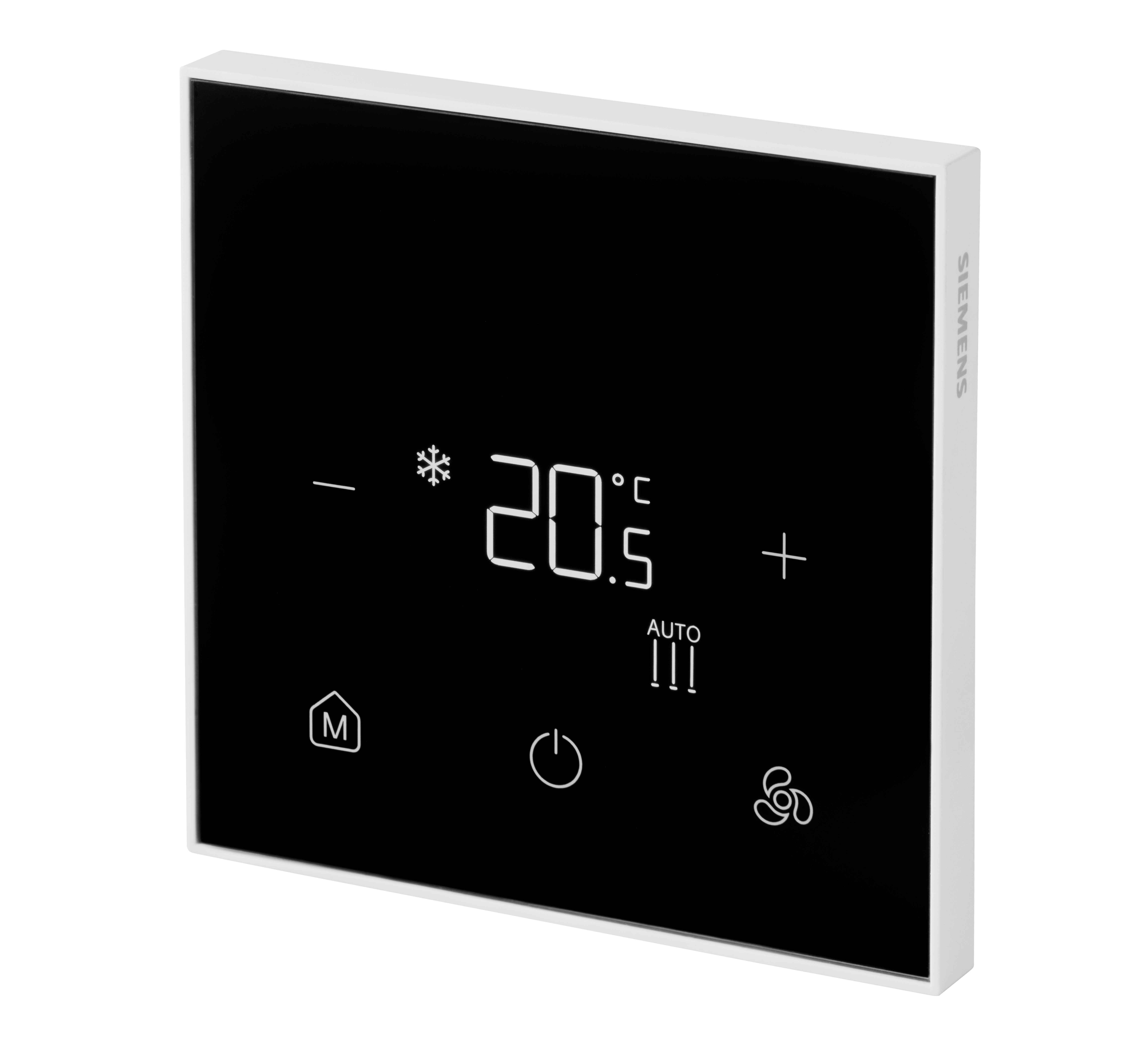

(3) Siemens RDF400BN Series
Consider for: FCU projects requiring BACnet or Modbus communication.
The Siemens RDF400BN family includes room thermostats for BACnet/Modbus applications. It is a relevant option when the thermostat must communicate with a building management system.
Check the precise model designation when choosing fan and valve control. Controllers within the wider family have different output arrangements, so a shared appearance does not mean identical capabilities.

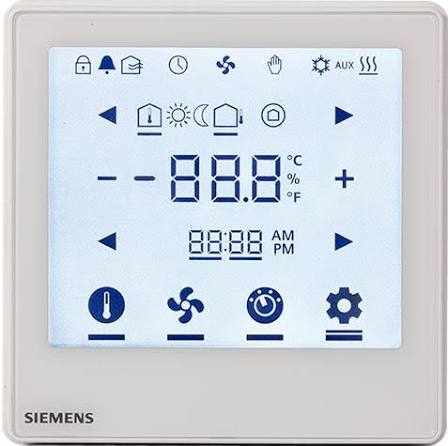

(4) Siemens RDF800 Series
Consider for: FCU projects requiring a flush-mounted touch interface.
The Siemens RDF800 series includes touch room thermostats for 2-pipe and 4-pipe fan coil applications, with additional configurations described in the manufacturer’s documentation.
Alongside the electrical requirements, check the wall box, mounting frame and installation dimensions. These details matter particularly when replacing an existing thermostat without changing the room finish.

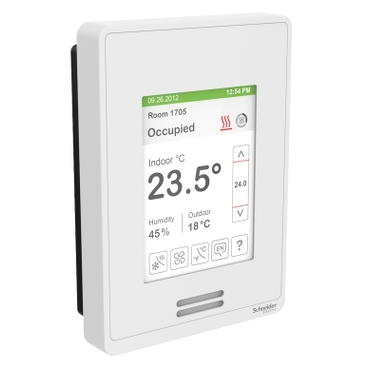

(5) Schneider Electric SpaceLogic SE8300 Series
Consider for: commercial fan coil room control.
The SpaceLogic SE8300 range includes controllers for 2-pipe and 4-pipe fan coil systems. The manufacturer’s selection guide identifies configurations for water-valve control and fans with up to three speeds.
For example, the SE8350U0B00 is identified as a low-voltage fan coil controller with BACnet MS/TP and humidity sensing/control. Confirm the exact controller, output arrangement and any associated equipment required by the projec

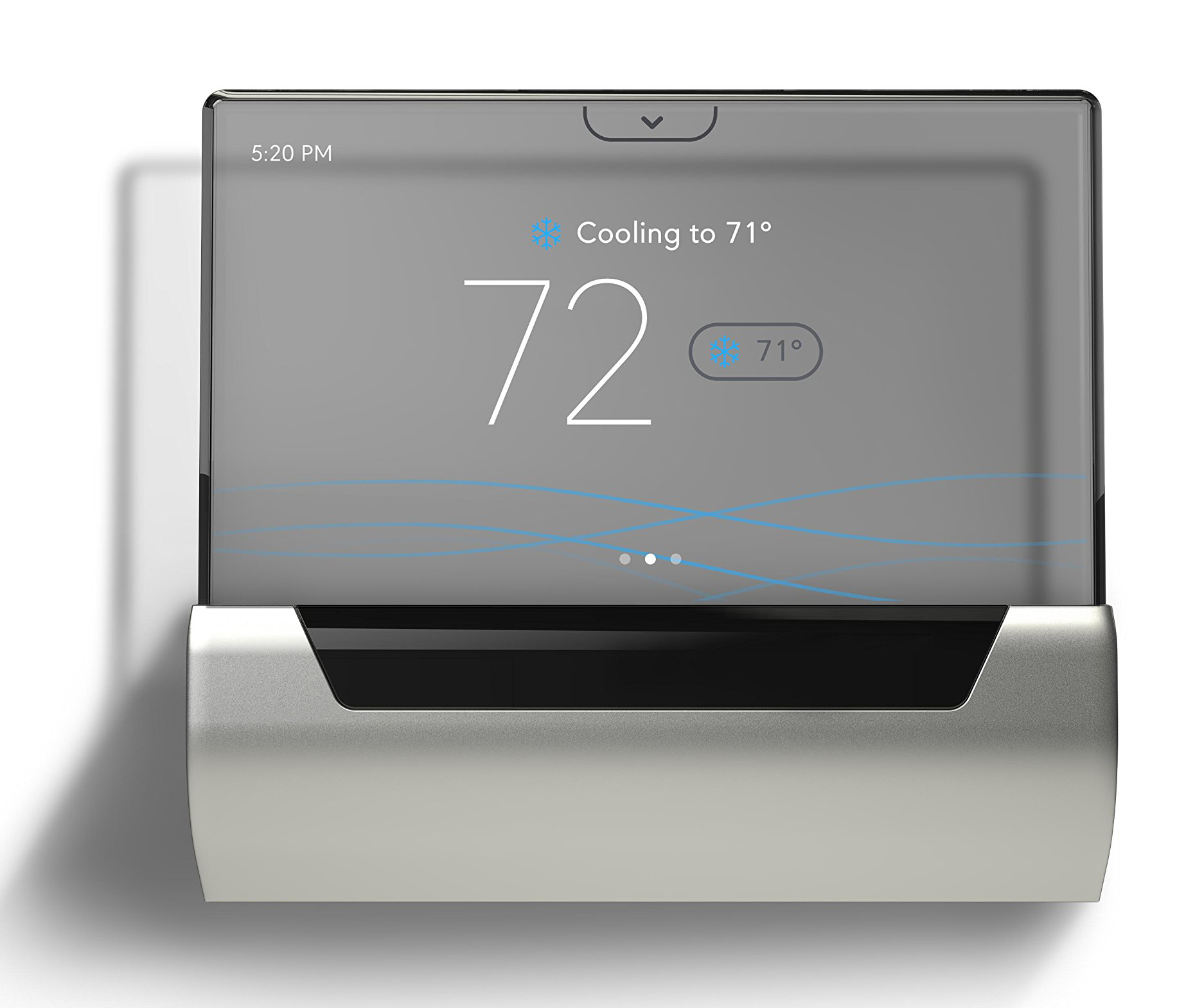

(6) Johnson Controls FCP Series
Consider for: standalone FCU control in hotels, offices and similar buildings.
The Johnson Controls FCP range includes programmable and non-programmable thermostats for fan coil units and PTAC applications. FCU configurations include 2-pipe or 4-pipe control, on/off outputs and up to three fan speeds.
Choose the correct version carefully: the range also includes a no-fan model. If centralized communication is required, confirm that requirement separately rather than assuming it is included.

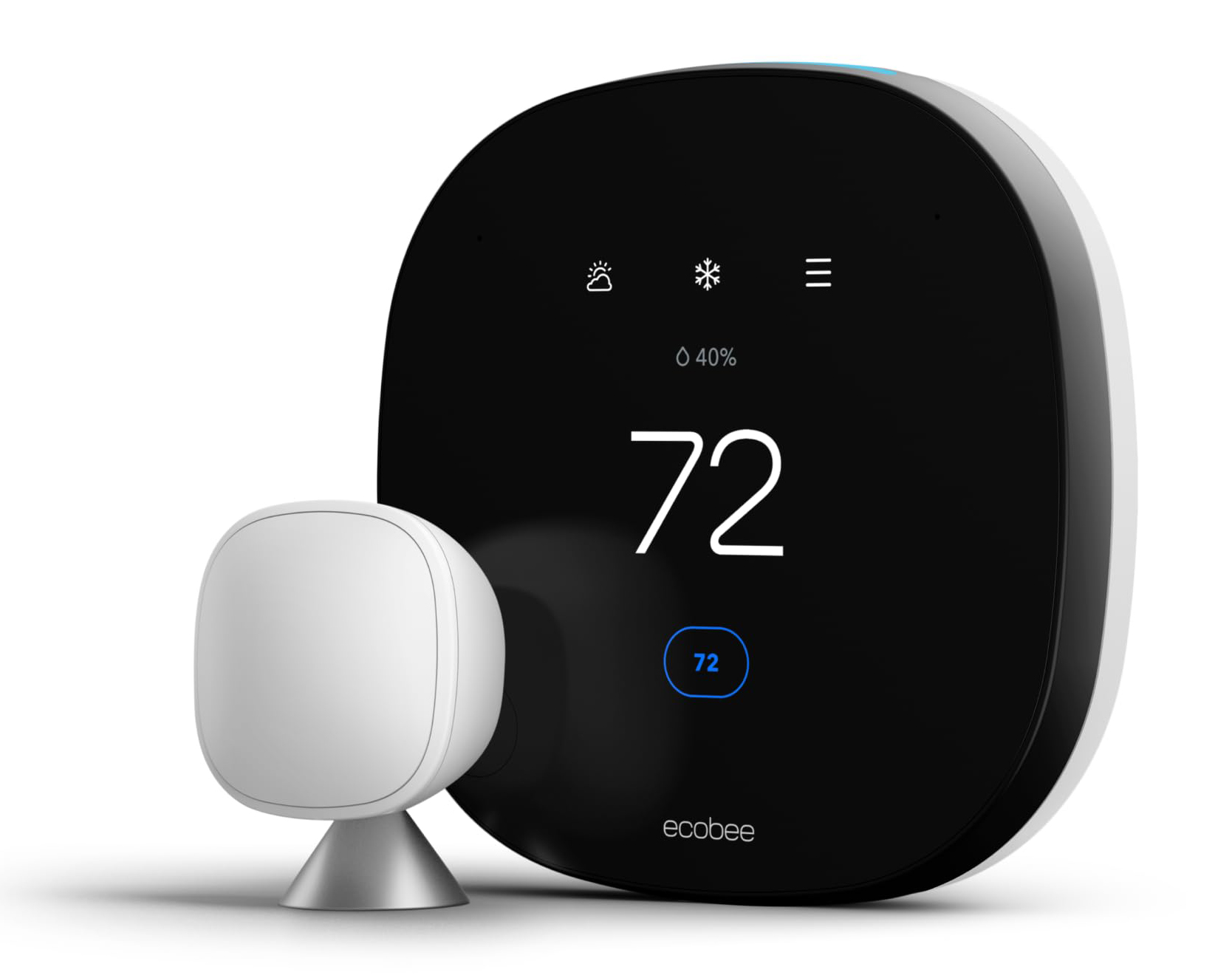

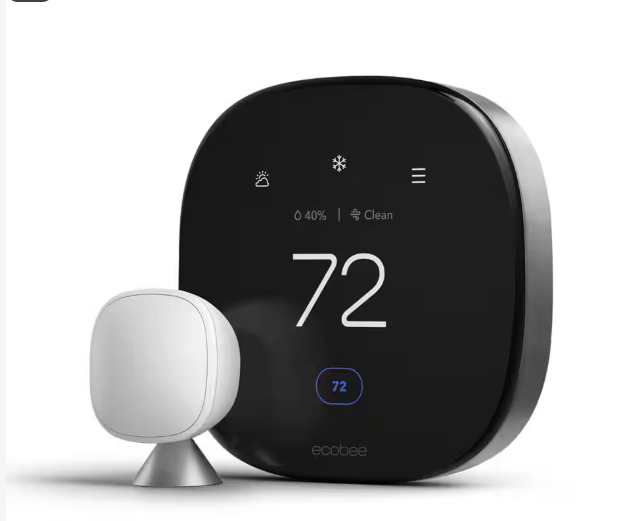

(7) ecobee Smart Thermostat Premium
Consider for: compatible 24VAC fan coil systems where app control is a priority.
ecobee lists support for compatible fan coil units with up to three fan speeds on its Smart Thermostat Premium product page. This makes it an option worth checking for suitable low-voltage installations.
Compatibility must be confirmed using the exact equipment and wiring. Do not assume it can directly replace a line-voltage FCU thermostat or provide the outputs and BMS communication required by a commercial project.
Use the ecobee compatibility checker before selecting this model.

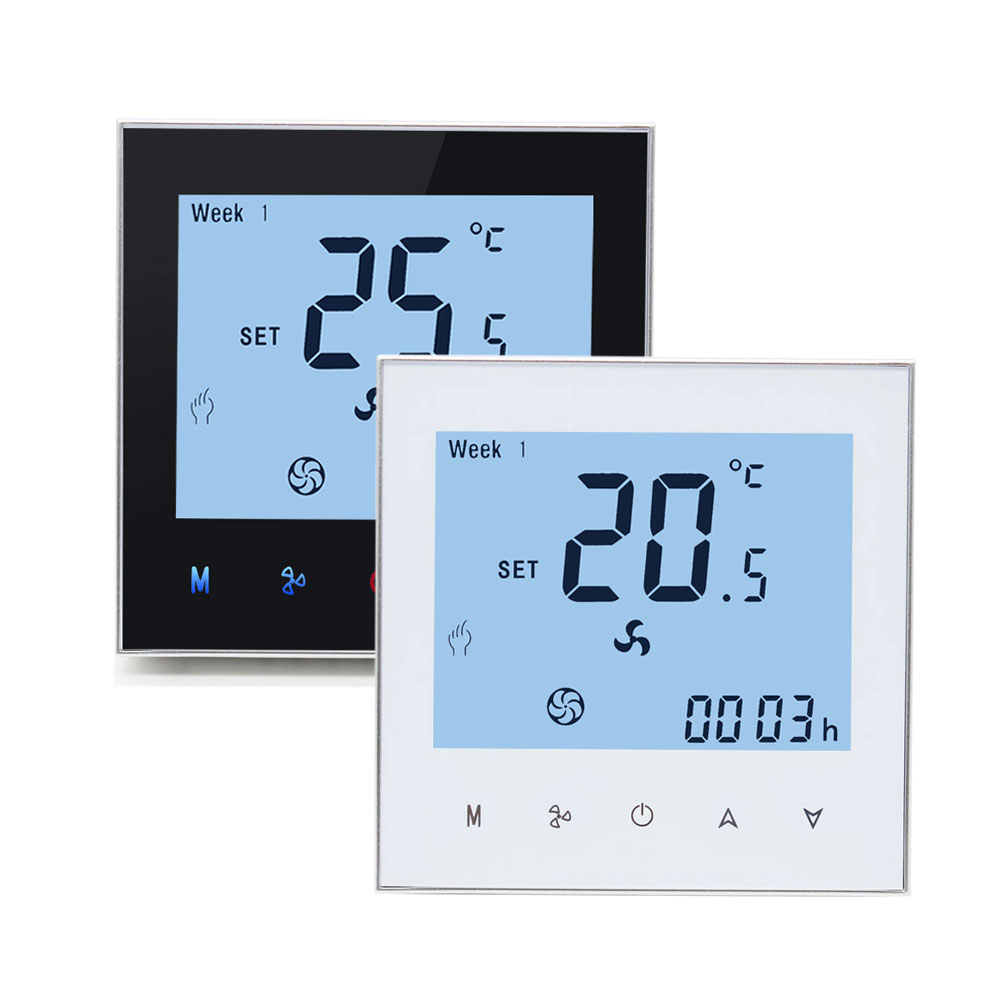

(8) Beris Tech BT03 Series FCU Thermostat
Best for: Commercial FCU projects with BMS integration
This model is designed specifically for commercial fan coil units, supporting:
- ● 2-pipe / 4-pipe systems
- ● 3-speed fan or 0–10V fan control
- ● Modbus / optional BACnet integration
- ● External sensor support
It is widely used in hotels, office buildings, and projects requiring stable BMS communication.
(9) Beris Tech BT01 Series FCU Thermostat
Best for: Cost-effective projects & distributor supply
BT01 is a high-volume model designed for:
- ● Standard FCU control
- ● Easy installation (EU 86 box)
- ● Competitive pricing for bulk orders
Suitable for distributors and budget-sensitive projects.

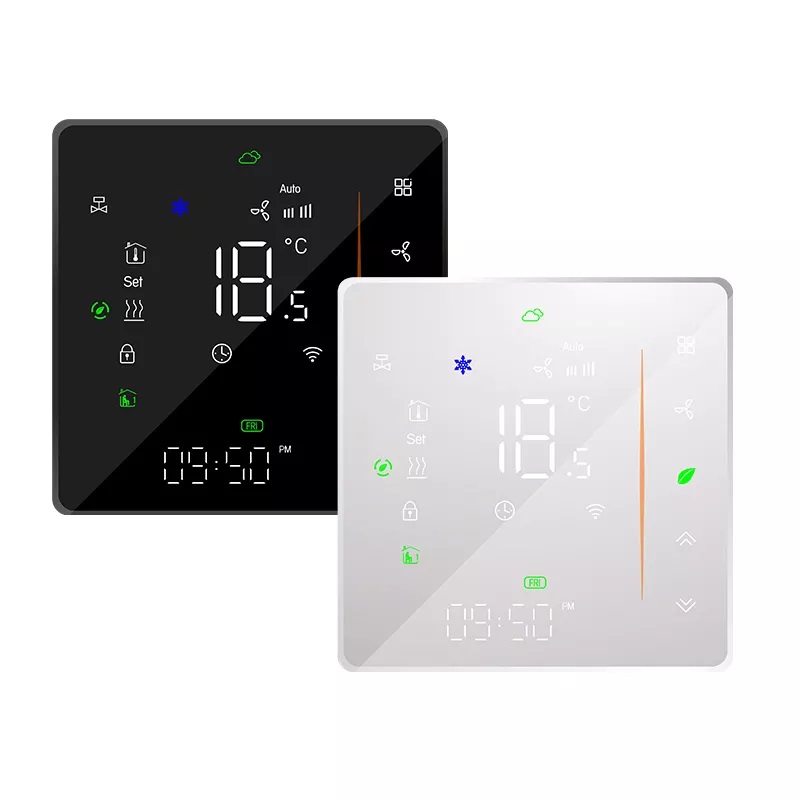

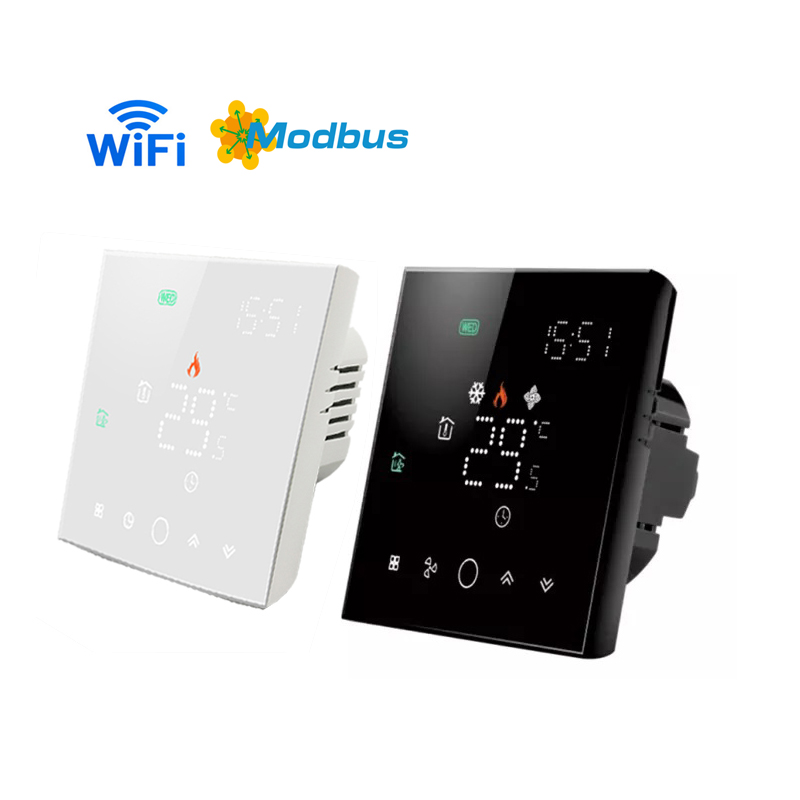

Consider for: projects requiring both WiFi and Modbus communication.
The BT02-FCU-WNK combines WiFi and Modbus in one thermostat. The configuration listed on its product page is intended for a 2-pipe system with a 3-speed fan and 0–10V modulating valve control. It also lists two keycard connections.
This is a specific configuration within the BT02 range. If the project requires a 4-pipe system, an EC fan or a different valve output, request a separate configuration check.
View the BT02 WiFi and Modbus thermostat.
4. How to Choose the Right FCU Thermostat?
Choosing the right thermostat depends on your project type and system configuration.
Here are some quick recommendations:
- ● For hotel projects: Choose models like Honeywell T6861 or Beris Tech BT03 for stable FCU control and easy replacement.
- ● For BMS / smart building projects: Go for thermostats with Modbus or BACnet communication (e.g. Beris Tech BT03).
- ● For cost-sensitive or distributor projects: BT01 is a practical choice with reliable performance and competitive pricing

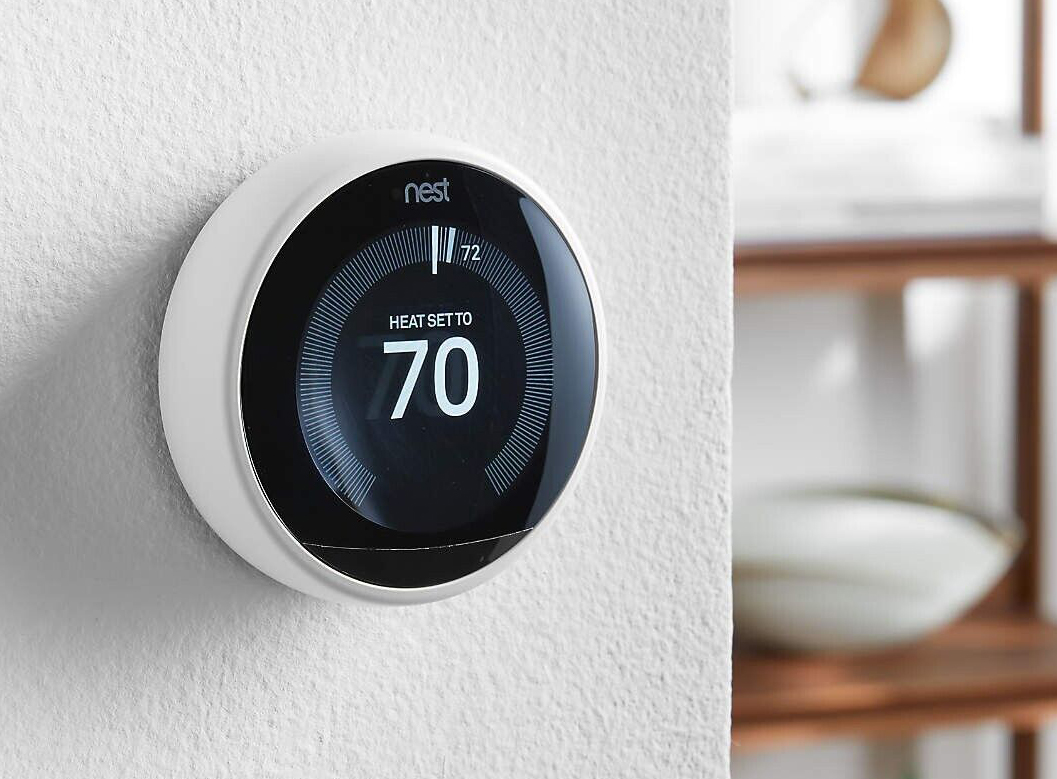

- ● For smart home applications: Ecobee or Nest are more suitable.
For more detailed hotel-specific selection criteria, see our FCU thermostat guide for hotel projects.
5. Why Choose Beris Tech for FCU Thermostats?
Compared with standard brands, Beris Tech focuses on:
- ● Flexible configuration (2/4 pipe, 0–10V, Modbus, etc.)
- ● OEM customization for projects and distributors
- ● Fast lead time (7–10 days for samples, 20–25 days for bulk)
- ● Engineering support for system matching
6. Not Sure Which Model Fits Your Project?
If you're selecting thermostats for a project, we can help you quickly identify the right model.
Just share a few details:
- ● 2-pipe or 4-pipe system
- ● Fan type (3-speed or 0–10V)
- ● Valve type (on/off or modulating)
- ●Any BMS requirement (Modbus / BACnet)
We will recommend suitable models within 24 hours. Or explore our full range of FCU thermostats here: Beris-Tech FCU Thermostats List
