What Makes DX HVAC Systems Different – and Why the Right Thermostat Matters?

When designing an HVAC system, one common question arises: Should we choose a DX (Direct Expansion) system or a chilled water system? Both approaches are widely used, but they differ in how they deliver cooling, their investment cost, and their flexibility.

In this article, we’ll explore the key features of DX HVAC systems, compare them with chilled water systems, and explain why a DX thermostat is the key solution for comfort, efficiency, and reliability.

    ■ What is a DX HVAC System?

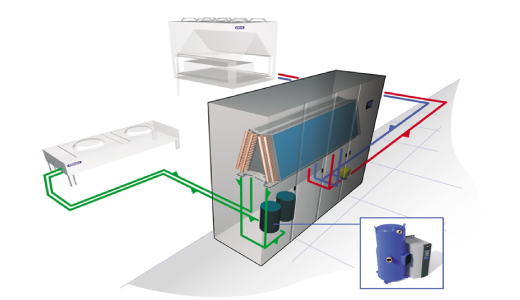

DX (Direct Expansion) systems cool air by having the refrigerant evaporate directly inside the coil, absorbing heat from the air that passes through. The cooled air is then supplied directly to the space.

This is very different from a chilled water system, where a central chiller produces cold water, which then circulates through pipes to fan coil units (FCUs) or air handling units (AHUs) for cooling the air.

    ★ In short: DX = simpler, more flexible, and cost-effective cooling.

     Key Features of DX HVAC Systems

• ☑ Direct Cooling – Refrigerant absorbs heat directly from the air, no chilled water loop required.
• ☑ Lower Initial Investment  – No pumps or extensive piping, compact design, faster installation.
• ☑ Independent Zone Control – Each DX unit can run separately, ideal for hotels and offices.
• ☑ High Partial-Load Efficiency – Multi-stage or inverter compressors save energy at low loads.
• ☑ Reliability – Independent units ensure that if one fails, others continue running.

     ■ Why the Thermostat is the Heart of a DX System？

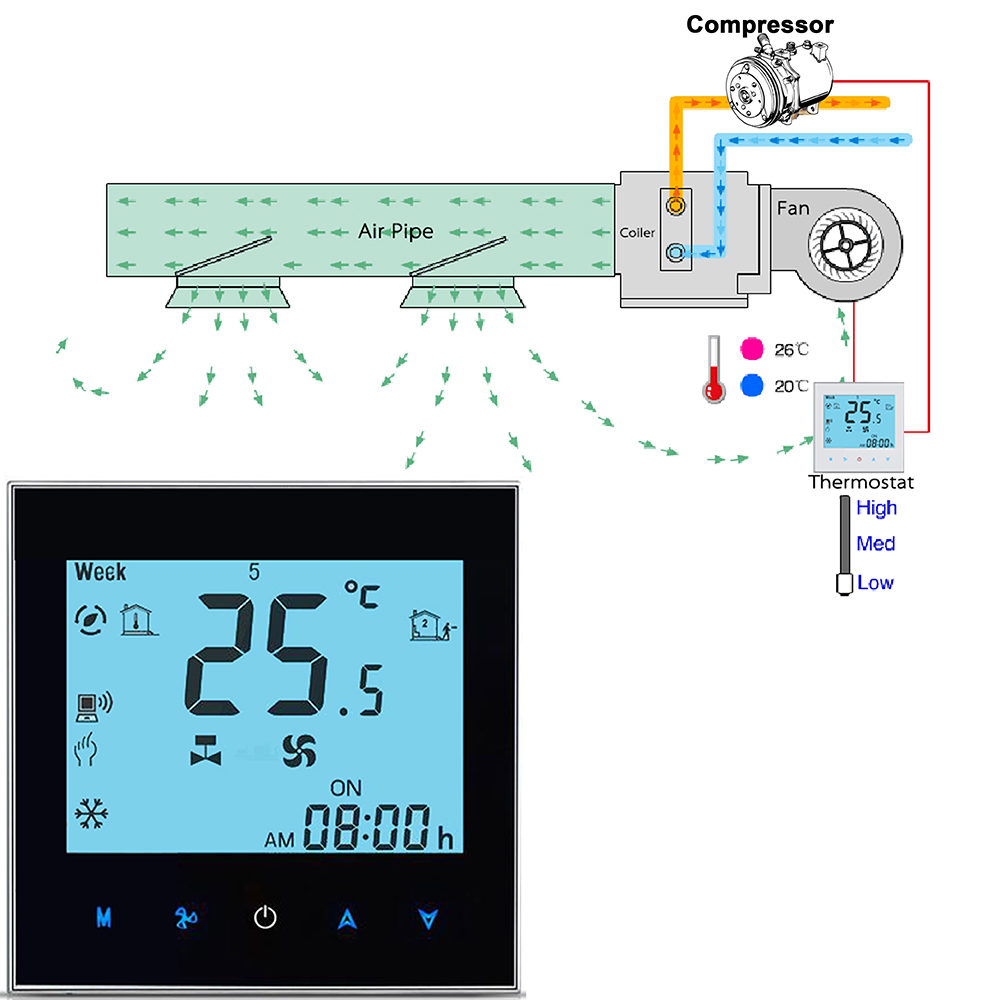

Unlike chilled water systems where control is centralized, a DX system depends on the thermostat to directly control compressors, fans, reversing valves, and modes of operation. The thermostat becomes the “brain” of each unit.

     A professional DX thermostat offers:

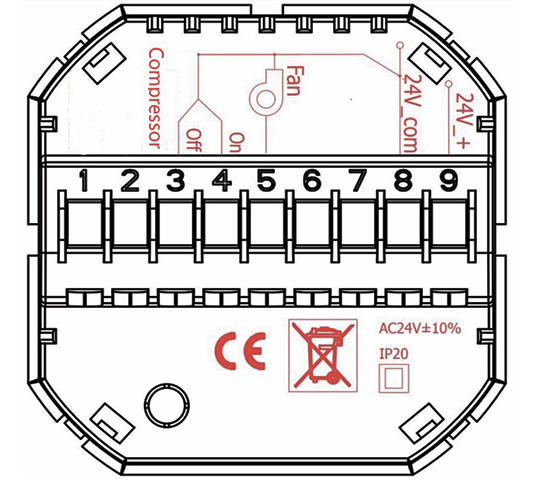

1. ☑ Compressor control (single-stage, two-stage, or modulating).
2. ☑ Fan speed control (manual or automatic, including 0-10V ECM fan control).
3. ☑ Mode selection (cooling, heating, auto, fan-only, dehumidification).
4. ☑ Heat pump support (reversing valve control for cooling/heating).
5. ☑ Built-in safety protections (compressor delay, anti-frost, energy-saving functions).

    With the right thermostat, building owners benefit from:

• ☑ Accurate comfort control
• ☑ Reduced energy consumption
• ☑ Longer equipment lifespan
• ☑ Compatibility across rooftop units, VRF, split systems, and heat pumps

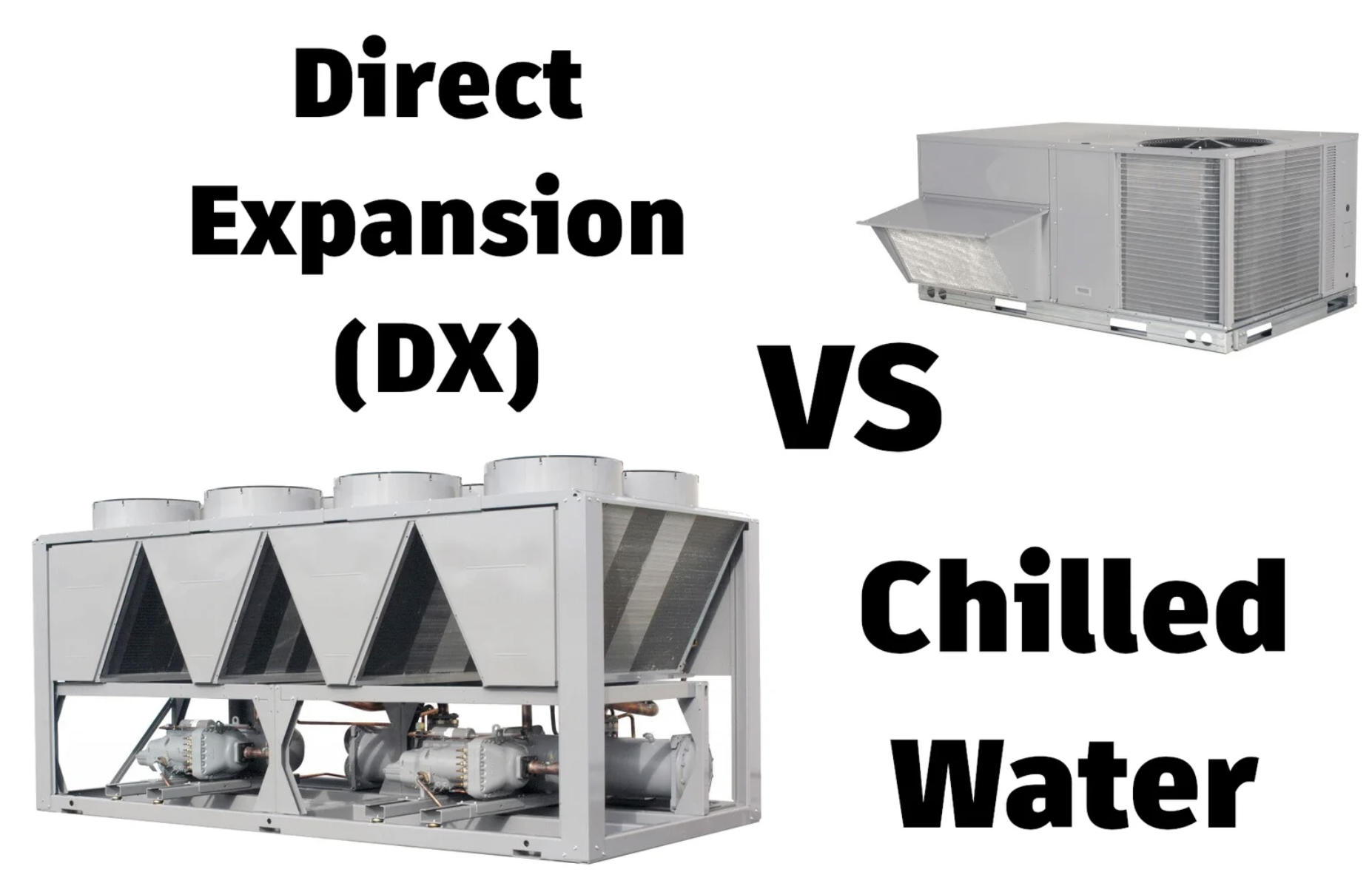

   ■ DX vs. Chilled Water Systems: Quick Comparison

    ■ Where Do DX Thermostats Add the Most Value?

• ☑ Hotels & Apartments  – Independent room temperature control.
• ☑ Offices & Retail Spaces – Flexible zoning for tenants.
• ☑ Rooftop Units (RTUs) – Stable performance with reliable thermostat control.
• ☑ VRF & Heat Pump Systems – Advanced thermostats support reversing valve control and modulating fans.

DX Thermostat Solutions by Xiamen Beris Tech Co., Ltd.

At Xiamen Beris Tech Co., Ltd., we specialize in the design and manufacturing of DX thermostats for a wide range of Direct Expansion HVAC systems. Our solutions include:

• ☑ Compressor control (single-stage, two-stage, or modulating)

• ☑ Fan speed control (manual or automatic, sometimes 0-10V ECM fans)

• ☑ Mode selection (cooling, heating, auto, fan-only)

• ☑ Heat pump support (reversing valve control for cooling/heating switch)

• ☑ Safety protections (compressor delay, anti-frost functions)



•
• DX thermostats provide:
• ☑ Precise temperature control
• ☑ Energy efficiency at partial loads
• ☑ Reliable protection for compressors and fans
• ☑ Compatibility with various DX applications

    ■ Conclusion

DX HVAC systems are a cost-effective, flexible, and efficient solution for small to medium-sized projects. But without the right thermostat, even the best DX unit cannot operate at its full potential.

That’s why Xiamen Beris Tech Co., Ltd. offers dedicated DX thermostats that combine comfort, energy savings, and system reliability.

Visit our website www.beris-tech.com or contact us to learn more about our DX thermostat solutions and find the right controller for your next HVAC project.
